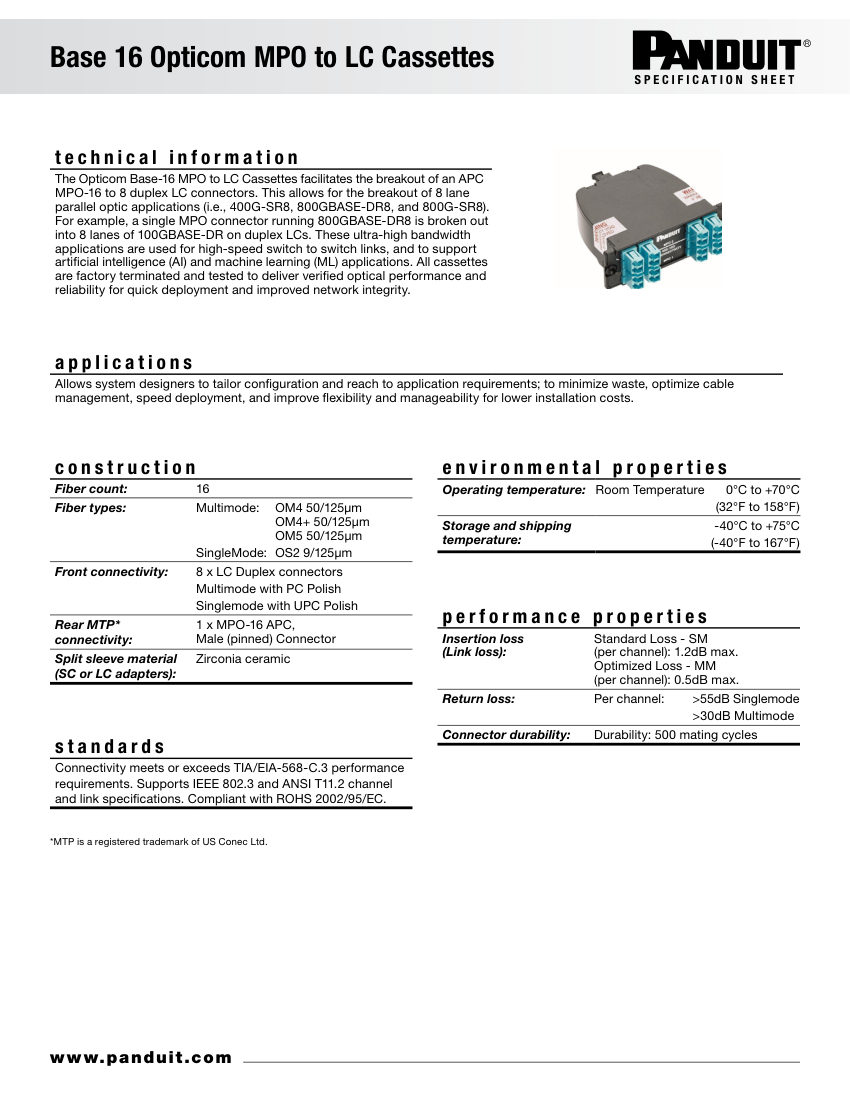

Panduit111309048

Name: Panduit 111309048
Brand: Panduit
SKU: 111309048

Panduit MPO to LC Breakout Cassette (Optical Fiber Cassettes). Model 111309048. Fiber types: OM4, OM4+, OM5 (50/125μm) and OS2 (9/125μm)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	111309048
Description	Panduit MPO to LC Breakout Cassette (Optical Fiber Cassettes). Model 111309048. Fiber types: OM4, OM4+, OM5 (50/125μm) and OS2 (9/125μm)
Insertion loss	1.2dB max (SM Standard), 0.5dB max (MM Optimized)
Return loss	>55dB Singlemode, >30dB Multimode
Connector durability	500 mating cycles. material: Zirconia ceramic split sleeve
Connection size	16-fiber MPO to 8x LC Duplex
End connection	Front: 8x LC Duplex (PC/UPC), Rear: 1x MPO-16 Male Pinned (APC)
Dimensions	3.5 x 4.2 x 3.5 [89 x 107 x 89] mm
Compliance	TIA/EIA-568-C.3, IEEE 802.3, ANSI T11.2, ROHS 2002/95/EC.
