DIV 27 · COMMUNICATIONSNETWORK INFRASTRUCTURECUT SHEET INDEXED

Panduit111603335

Panduit Fiber Optic Drop Cable Assembly (Fiber Optic Cable). Model 111603335. 1 Fiber G.652.D (OS2)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF111603335.pdfData sheet

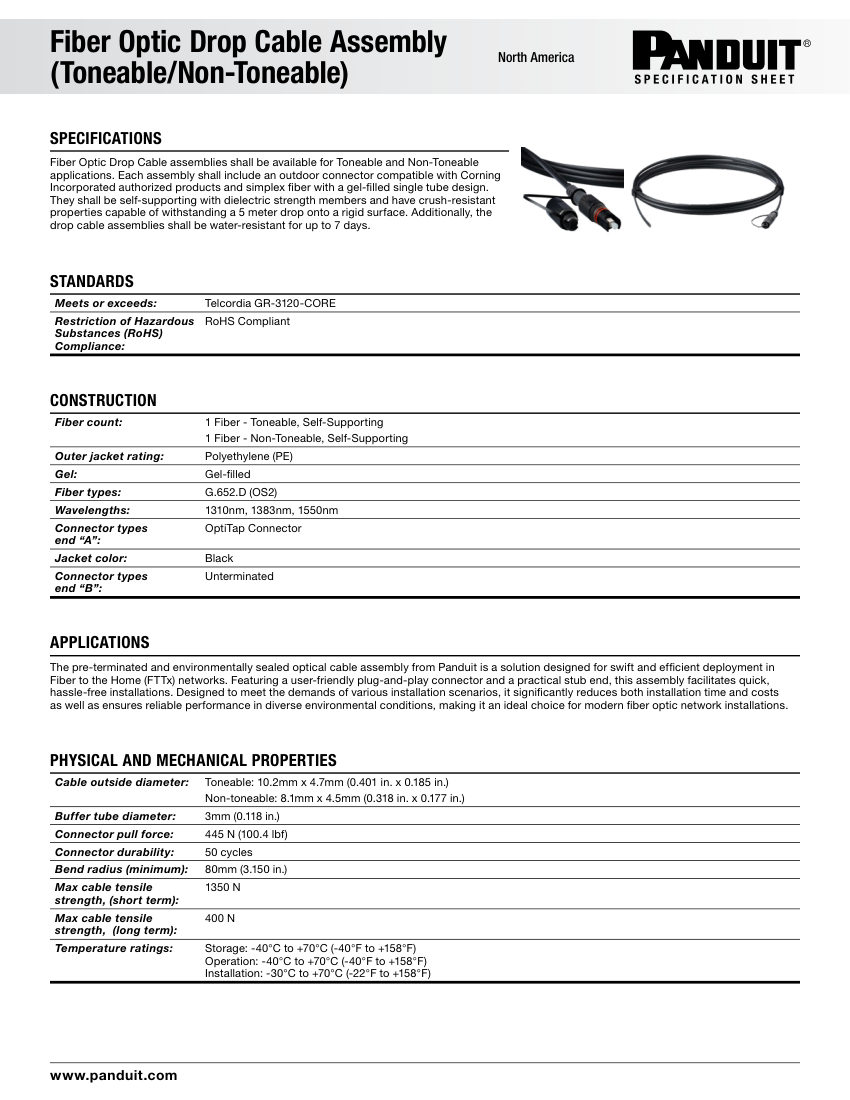

Panduit 111603335 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
111603335
Product type
Network Infrastructure
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog number111603335
DescriptionPanduit Fiber Optic Drop Cable Assembly (Fiber Optic Cable). Model 111603335. 1 Fiber G.652.D (OS2)
Wavelengths1310nm, 1383nm, 1550nm
Max insertion loss0.15dB
Min return loss-65dB. material: Polyethylene (PE) jacket, Gel-filled
End connectionOptiTap Connector (End A), Unterminated (End B)
FinishBlack jacket
MountingSelf-supporting
DimensionsToneable: 10.2mm x 4.7mm; Non-toneable: 8.1mm x 4.5mm
ComplianceTelcordia GR-3120-CORE, RoHS.
