DIV 27 · COMMUNICATIONSNETWORK INFRASTRUCTURECUT SHEET INDEXED

Panduitbase 16 fiber cabling systems fbdg4 sa engbase-16-fiber-cabling-systems-fbdg4-sa-eng

Panduit Fiber Enclosures, Panels, and Cassettes (Fiber Cabling Systems). Model FLEX1U12, FLEX2U12, FLEX4U12, FHC3ZO-16M-10, FHMP-6M-ABL, FHMP-4M-ABL. Supports 1.6 terabits per second bandwidth; 16-fiber to 8-port conversion capability; Compatible with OM4, OM4+, OM5, and OS2 fiber types; Includes 12-port enclosures and panels in 1U, 2U, and 4U sizes. connectionSize: MPO-16, LC Duplex

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFbase-16-fiber-cabling-systems-fbdg4-sa-eng.pdfData sheet

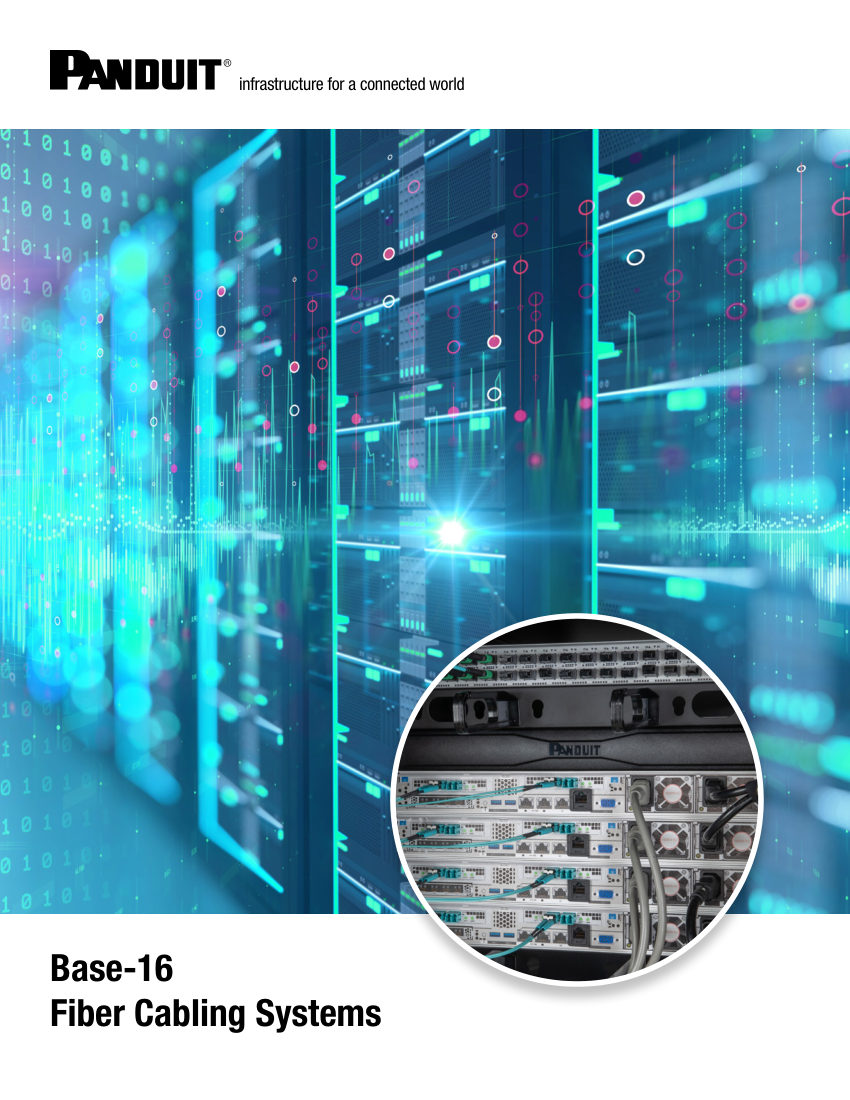

Panduit base-16-fiber-cabling-systems-fbdg4-sa-eng cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
base-16-fiber-cabling-systems-fbdg4-sa-eng
Product type
Network Infrastructure
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberbase-16-fiber-cabling-systems-fbdg4-sa-eng
DescriptionPanduit Fiber Enclosures, Panels, and Cassettes (Fiber Cabling Systems). Model FLEX1U12, FLEX2U12, FLEX4U12, FHC3ZO-16M-10, FHMP-6M-ABL, FHMP-4M-ABL. Supports 1.6 terabits per second bandwidth; 16-fiber to 8-port conversion capability; Compatible with OM4, OM4+, OM5, and OS2 fiber types; Includes 12-port enclosures and panels in 1U, 2U, and 4U sizes. connectionSize: MPO-16, LC Duplex
End connectionMPO-16, LC
FinishBlack
Mounting1 RU, 2 RU, 4 RU
ComplianceMethod B MPO Connectivity.
