DIV 27 · COMMUNICATIONSNETWORK INFRASTRUCTURECUT SHEET INDEXED

Panduitbase8 mpo breakout harness cable assemblies fbsp242base8-mpo-breakout-harness-cable-assemblies-fbsp242

Panduit MPO Breakout Harness (Fiber Optic Cable Assemblies). Model FBS P242. 4-to-1 breakout converting single MPO lane to 4 discrete LC duplex channels; Supports 40G, 100G, 200G, and 400G parallel optic standards

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFbase8-mpo-breakout-harness-cable-assemblies-fbsp242.pdfData sheet

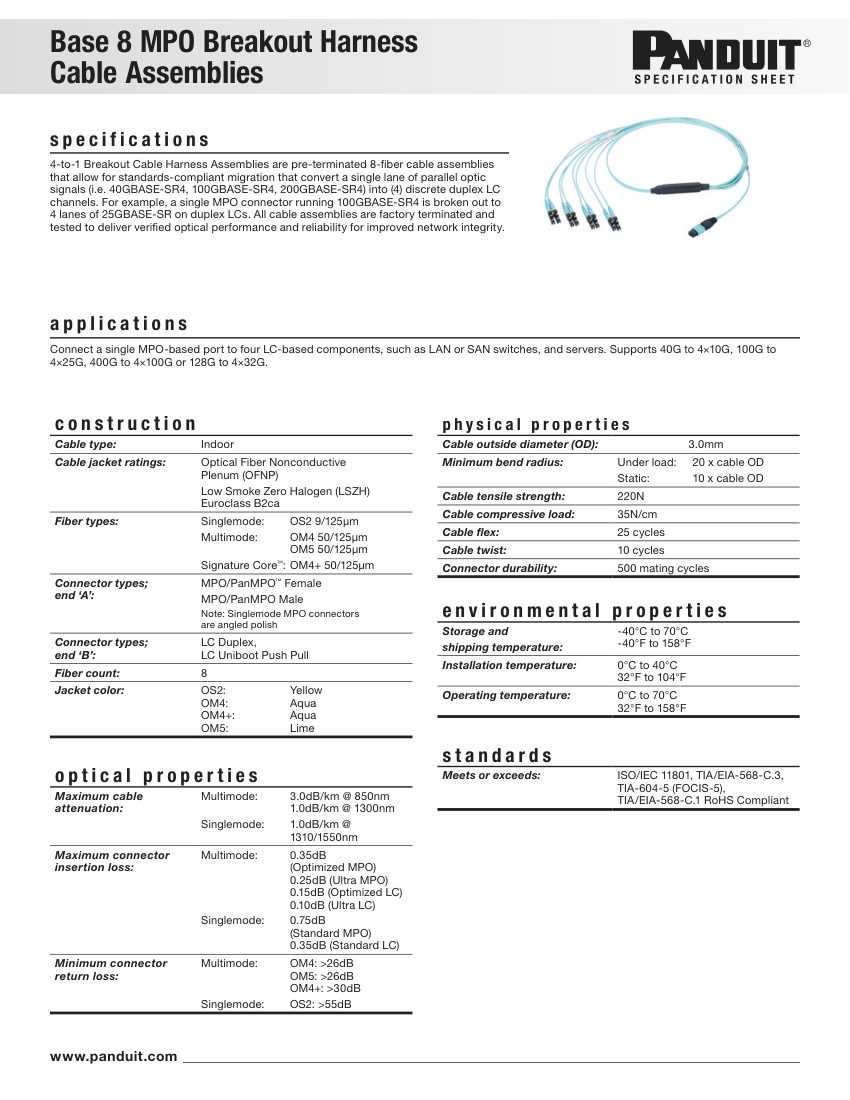

Panduit base8-mpo-breakout-harness-cable-assemblies-fbsp242 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
base8-mpo-breakout-harness-cable-assemblies-fbsp242
Product type
Network Infrastructure
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberbase8-mpo-breakout-harness-cable-assemblies-fbsp242
DescriptionPanduit MPO Breakout Harness (Fiber Optic Cable Assemblies). Model FBS P242. 4-to-1 breakout converting single MPO lane to 4 discrete LC duplex channels; Supports 40G, 100G, 200G, and 400G parallel optic standards
Fiber typesOS2, OM4, OM5, and OM4+ (Signature Core)
Cable outside diameter3.0mm. material: OFNP, LSZH, Euroclass B2ca
Connection size8-fiber
End connectionMPO/PanMPO to LC Duplex/Uniboot
Dimensions3.0mm OD
ComplianceISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5, RoHS.
