Panduit MPO Interconnect Cable Assembly (Fiber Optic Cabling). Model FBS P235 WW ENG. Fiber types: OS2, OM4, OM5, OM4+

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFbase8-mpo-interconnect-cable-assemblies-fbsp235-ww-eng.pdfData sheet

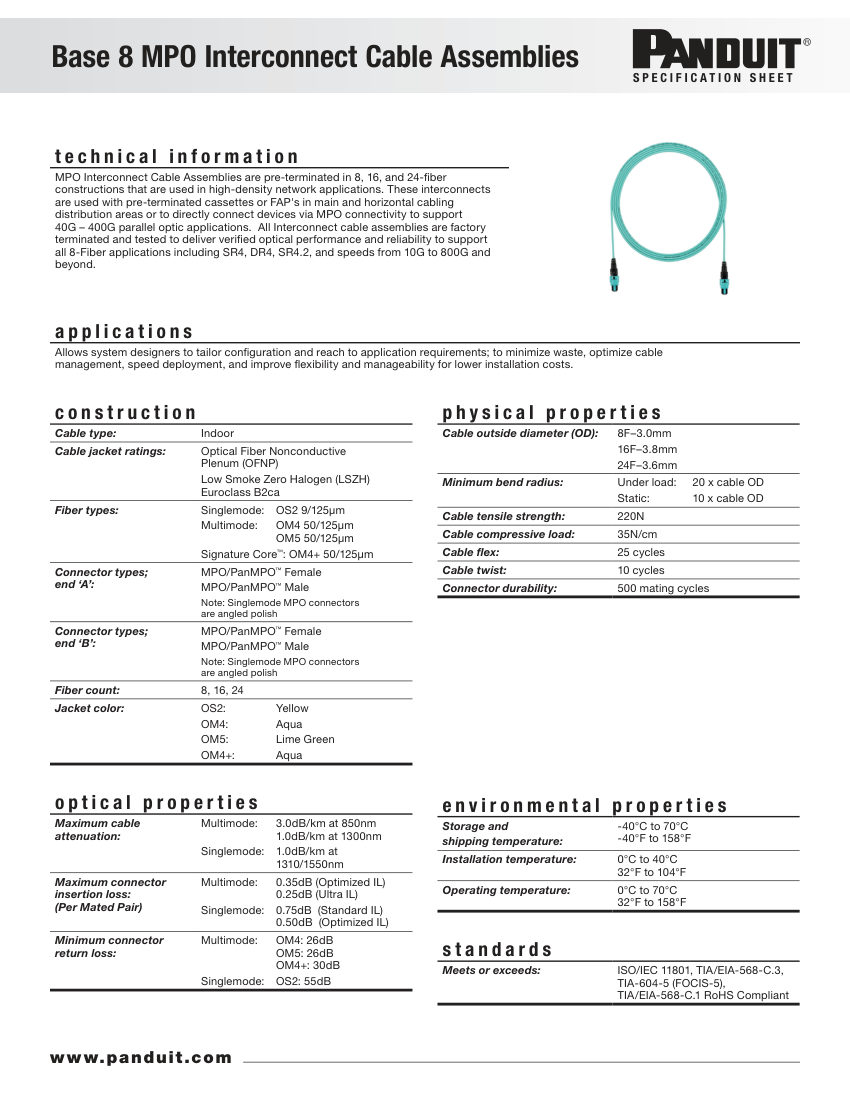

Panduit base8-mpo-interconnect-cable-assemblies-fbsp235-ww-eng cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
base8-mpo-interconnect-cable-assemblies-fbsp235-ww-eng
Product type
Network Infrastructure
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberbase8-mpo-interconnect-cable-assemblies-fbsp235-ww-eng
DescriptionPanduit MPO Interconnect Cable Assembly (Fiber Optic Cabling). Model FBS P235 WW ENG. Fiber types: OS2, OM4, OM5, OM4+
Max attenuation3.0dB/km (MM), 1.0dB/km (SM)
Operating temperature0°C to 70°C
Connector durability500 mating cycles. material: OFNP, LSZH, Euroclass B2ca
Connection size8, 16, 24 fibers
End connectionMPO/PanMPO Male/Female
DimensionsOD 3.0mm (8F), 3.8mm (16F), 3.6mm (24F)
ComplianceISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5, RoHS.
