PanduitMini-Com® TX5e™ Shielded Coupler ModuleCCS5E88BL

Panduit Shielded Coupler Module (Structured Cabling). Model CCS5E88BL. Category 5e/Class D performance (1-100 MHz); Supports PoE/PoH up to 100 watts (IEEE 802.3bt); Compatible with T568A and T568B wiring schemes; Operating temperature range: -10°C to 75°C. connectionSize: 8-position

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCCS5E88BL.pdfData sheet

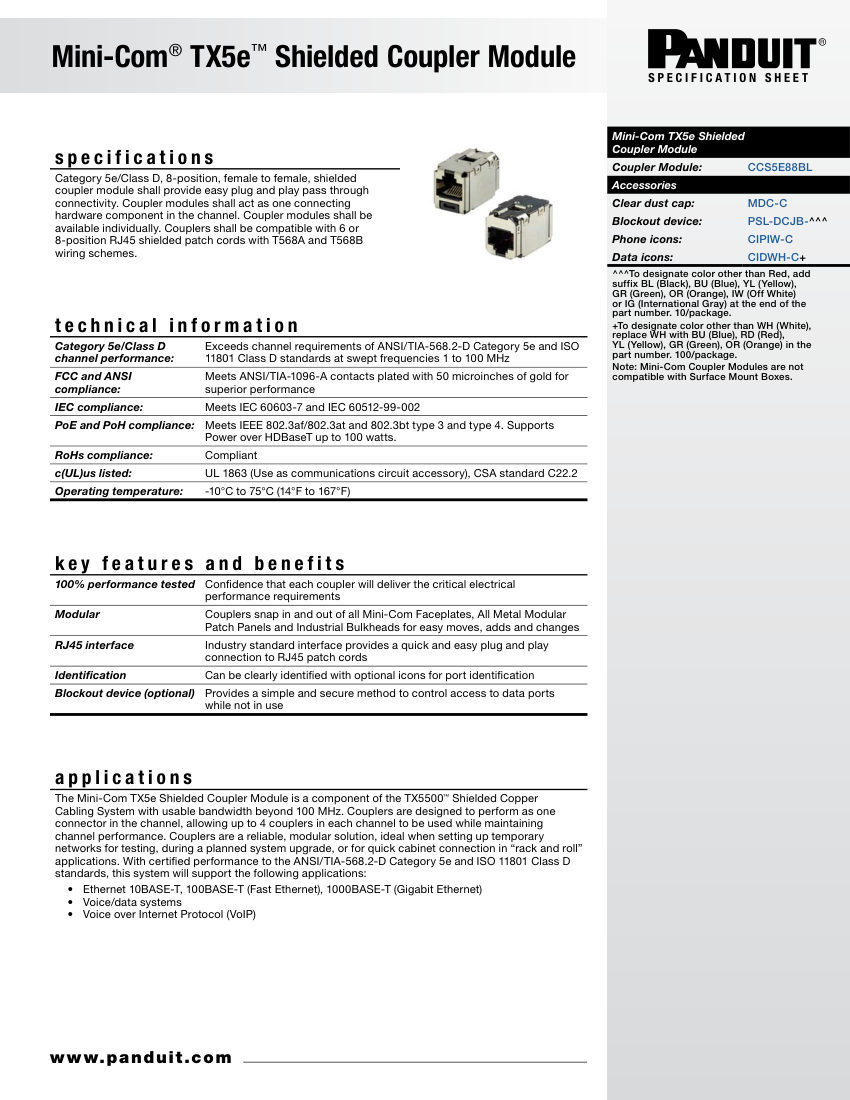

Panduit CCS5E88BL cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
CCS5E88BL
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCCS5E88BL
DescriptionPanduit Shielded Coupler Module (Structured Cabling). Model CCS5E88BL. Category 5e/Class D performance (1-100 MHz); Supports PoE/PoH up to 100 watts (IEEE 802.3bt); Compatible with T568A and T568B wiring schemes; Operating temperature range: -10°C to 75°C. connectionSize: 8-position
End connectionRJ45 female to female
MountingModular (Mini-Com Faceplates, Patch Panels, Bulkheads)
ComplianceANSI/TIA-568.2-D, ISO 11801 Class D, IEC 60603-7, UL 1863, RoHS
Voltage1000 VAC (Dielectric Withstand).
