PanduitMini-Com™ 86mm x 86mm Shuttered FaceplatesCFPL86F

Panduit Shuttered Faceplate (Mini-Com). Model CFPL86F1SAW, CFPL86F2SAW, CFPL86F4SAW. Available in 1, 2, and 4-port configurations; Features spring-loaded doors to protect connectors from dust and debris; Includes label pockets and icon slots for port identification; Concealed mounting screws provide added tamper resistance. connectionSize: 86mm x 86mm

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCFPL86F.pdfData sheet

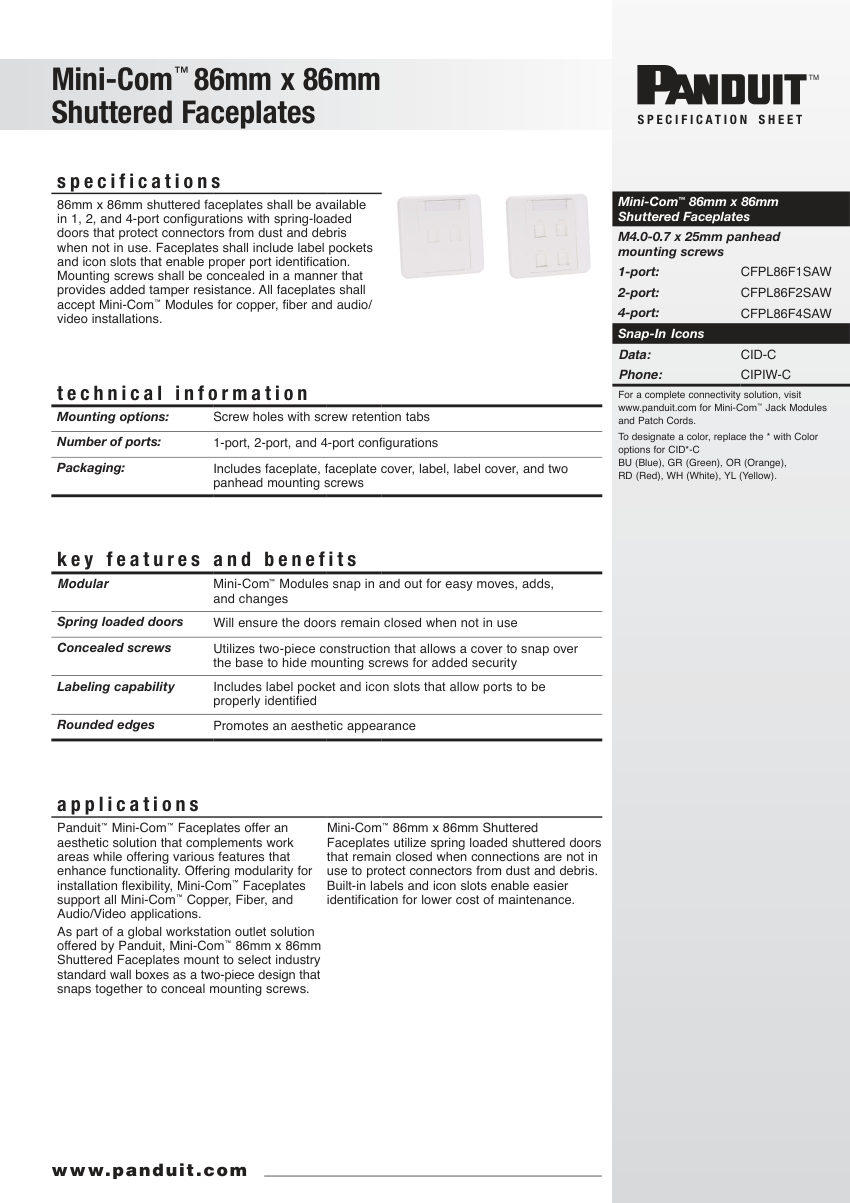

Panduit CFPL86F cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
CFPL86F
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCFPL86F
DescriptionPanduit Shuttered Faceplate (Mini-Com). Model CFPL86F1SAW, CFPL86F2SAW, CFPL86F4SAW. Available in 1, 2, and 4-port configurations; Features spring-loaded doors to protect connectors from dust and debris; Includes label pockets and icon slots for port identification; Concealed mounting screws provide added tamper resistance. connectionSize: 86mm x 86mm
End connectionScrew holes with screw retention tabs
MountingTwo-piece snap-together design with concealed screws
Dimensions86.0mm x 86.0mm.

Also cataloged as: CFPL86F1SAW, CFPL86F2SAW, CFPL86F4SAW, CFPL86F-1SAW, CFPL86F-2SAW, CFPL86F-4SAW
