DIV 27 · COMMUNICATIONSCOMMUNICATIONSCUT SHEET INDEXED

PanduitIndustrialNet™ Category 5e SF/UTP Copper CableCOSP343--WW-ENG

Panduit Category 5e SF/UTP Copper Cable (Industrial Ethernet Cable). Model COSP343--WW-ENG. Category 5e 2-pair SF/UTP construction; 24/7 AWG stranded copper conductors; Flame retardant and halogen-free PUR jacket; Temperature rating -40°C to 80°C. material: Stranded copper conductors, foamed polyethylene insulation, polyurethane (PUR) jacket

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCOSP343--WW-ENG.pdfData sheet

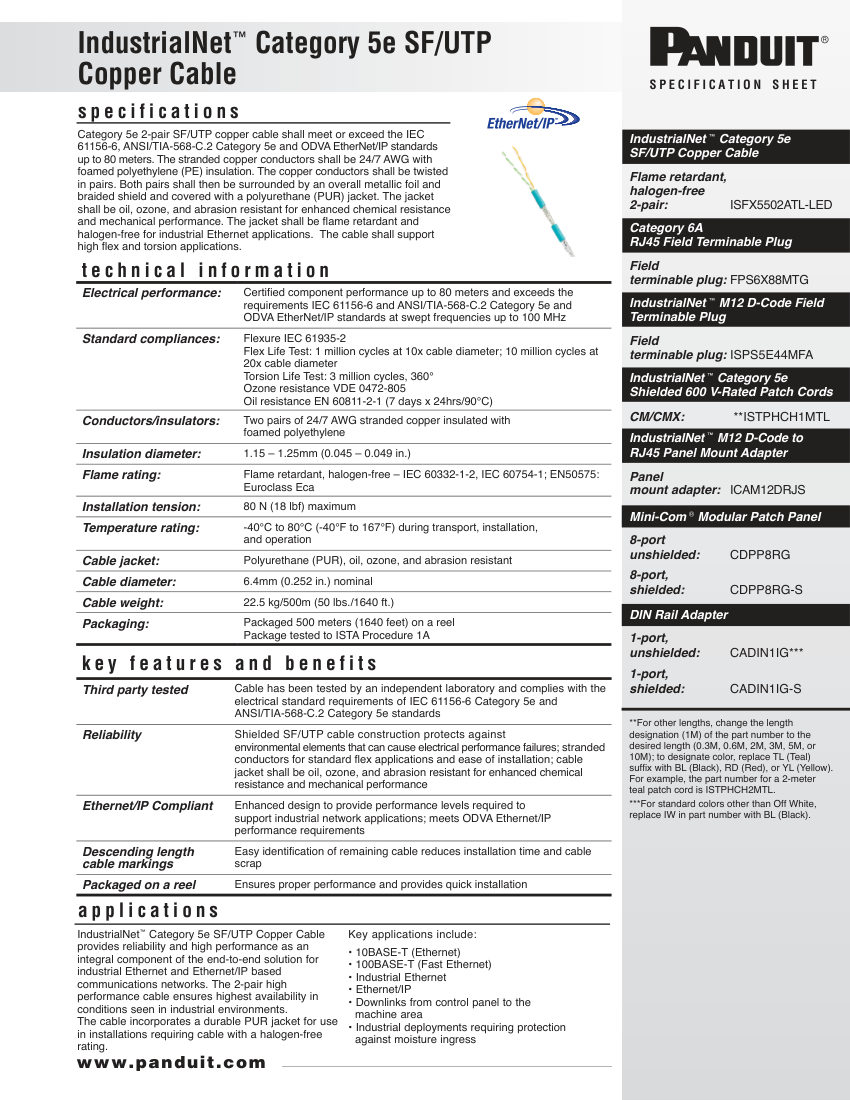

Panduit COSP343--WW-ENG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
COSP343--WW-ENG
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCOSP343--WW-ENG
DescriptionPanduit Category 5e SF/UTP Copper Cable (Industrial Ethernet Cable). Model COSP343--WW-ENG. Category 5e 2-pair SF/UTP construction; 24/7 AWG stranded copper conductors; Flame retardant and halogen-free PUR jacket; Temperature rating -40°C to 80°C. material: Stranded copper conductors, foamed polyethylene insulation, polyurethane (PUR) jacket
Dimensions6.4mm (0.252 in.) nominal diameter
ComplianceIEC 61156-6, ANSI/TIA-568-C.2, ODVA EtherNet/IP, IEC 60332-1-2, IEC 60754-1, EN50575.
