DIV 27 · COMMUNICATIONSCOMMUNICATIONSCUT SHEET INDEXED

PanduitIndustrialNet™ Category 5e Solid Conductor UTP Copper CableCOSP405--WW-ENG

Panduit Category 5e UTP Copper Cable (Industrial Ethernet Cable). Model COSP405--WW-ENG. Category 5e 4-pair UTP solid copper cable; Rated for 100 MHz performance; CMX Outdoor/CMR flame rating; Oil and sunlight resistant PVC jacket. material: Solid Copper, HDPE Insulation, PVC Jacket

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCOSP405--WW-ENG.pdfData sheet

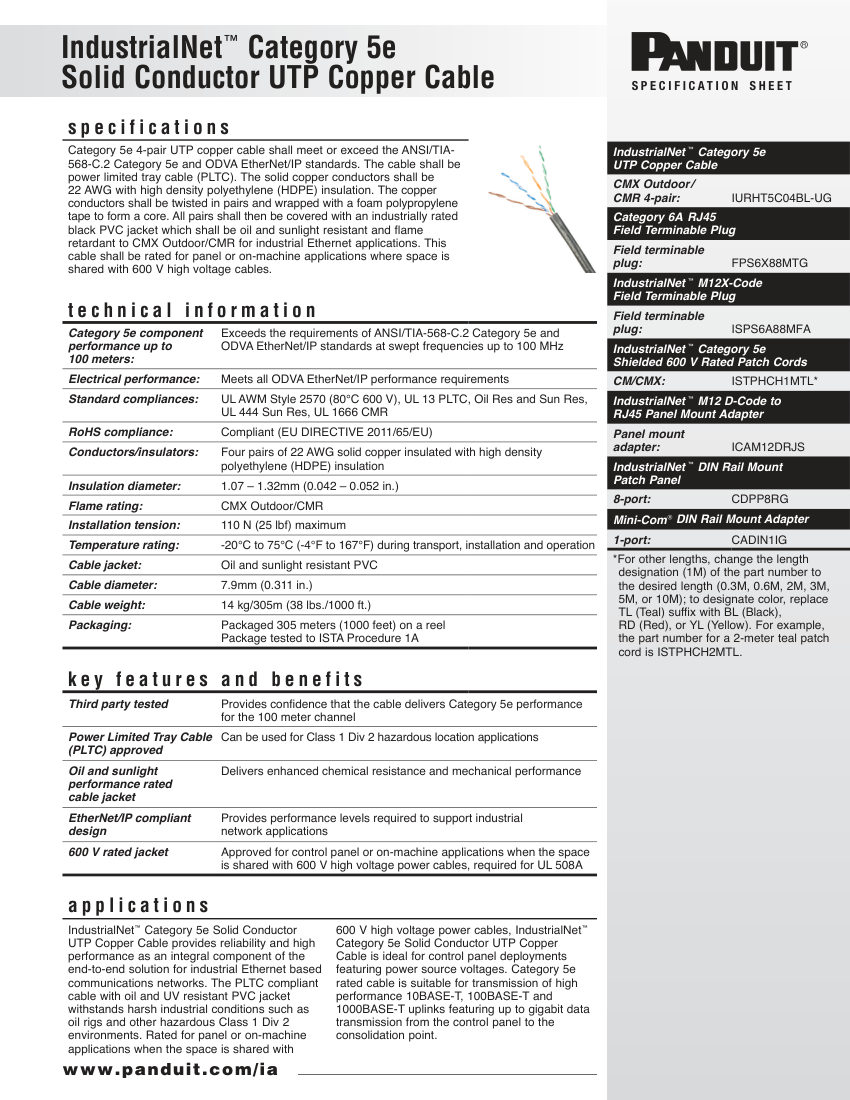

Panduit COSP405--WW-ENG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
COSP405--WW-ENG
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCOSP405--WW-ENG
DescriptionPanduit Category 5e UTP Copper Cable (Industrial Ethernet Cable). Model COSP405--WW-ENG. Category 5e 4-pair UTP solid copper cable; Rated for 100 MHz performance; CMX Outdoor/CMR flame rating; Oil and sunlight resistant PVC jacket. material: Solid Copper, HDPE Insulation, PVC Jacket
Connection size22 AWG
FinishBlack
MountingTray Cable
Dimensions7.9mm diameter
ComplianceANSI/TIA-568-C.2, ODVA EtherNet/IP, UL AWM Style 2570, UL 13 PLTC, RoHS.
