DIV 27 · COMMUNICATIONSCOMMUNICATIONSCUT SHEET INDEXED

PanduitIndustrialNet™ Category 6A SF/UTP Copper CableCOSP433-WW-ENG

Panduit Category 6A SF/UTP Copper Cable (Industrial Ethernet Cable). Model COSP433-WW-ENG. Category 6A performance up to 80m (24 AWG) and 66m (26 AWG); Shielded SF/UTP construction with braided shield and metallic foil; Oil, UV, weld splatter, and abrasion resistant TPE jacket; Rated for -40°C to 80°C operating temperature. material: Stranded copper conductors, HDPE insulation, TPE jacket

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCOSP433-WW-ENG.pdfData sheet

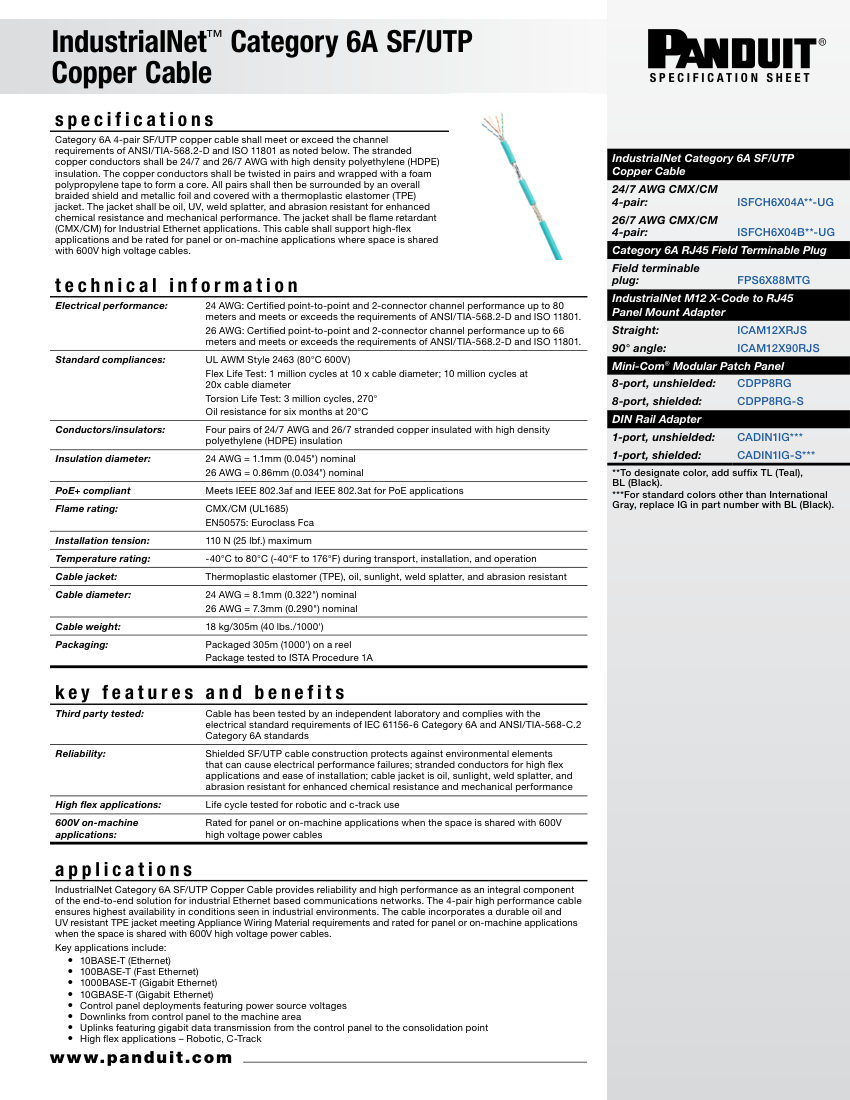

Panduit COSP433-WW-ENG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
COSP433-WW-ENG
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCOSP433-WW-ENG
DescriptionPanduit Category 6A SF/UTP Copper Cable (Industrial Ethernet Cable). Model COSP433-WW-ENG. Category 6A performance up to 80m (24 AWG) and 66m (26 AWG); Shielded SF/UTP construction with braided shield and metallic foil; Oil, UV, weld splatter, and abrasion resistant TPE jacket; Rated for -40°C to 80°C operating temperature. material: Stranded copper conductors, HDPE insulation, TPE jacket
Connection size4-pair
End connectionRJ45
MountingPanel or on-machine
Dimensions24 AWG: 8.1mm diameter; 26 AWG: 7.3mm diameter
ComplianceANSI/TIA-568.2-D, ISO 11801, UL AWM Style 2463, IEEE 802.3a
