DIV 27 · COMMUNICATIONSCOMMUNICATIONSCUT SHEET INDEXED

PanduitIndustrialNet™ Category 5e Solid Conductor F/UTP Copper CableCOSP438--SA-ENG

Panduit Category 5e F/UTP Copper Cable (Industrial Ethernet Cable). Model COSP438--SA-ENG. Category 5e performance up to 100 MHz; Flame rating CMX Outdoor/CMR; Oil and sunlight resistant jacket; Temperature rating -40°C to 75°C operation. material: Solid Copper, HDPE Insulation, PVC Jacket

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCOSP438--SA-ENG.pdfData sheet

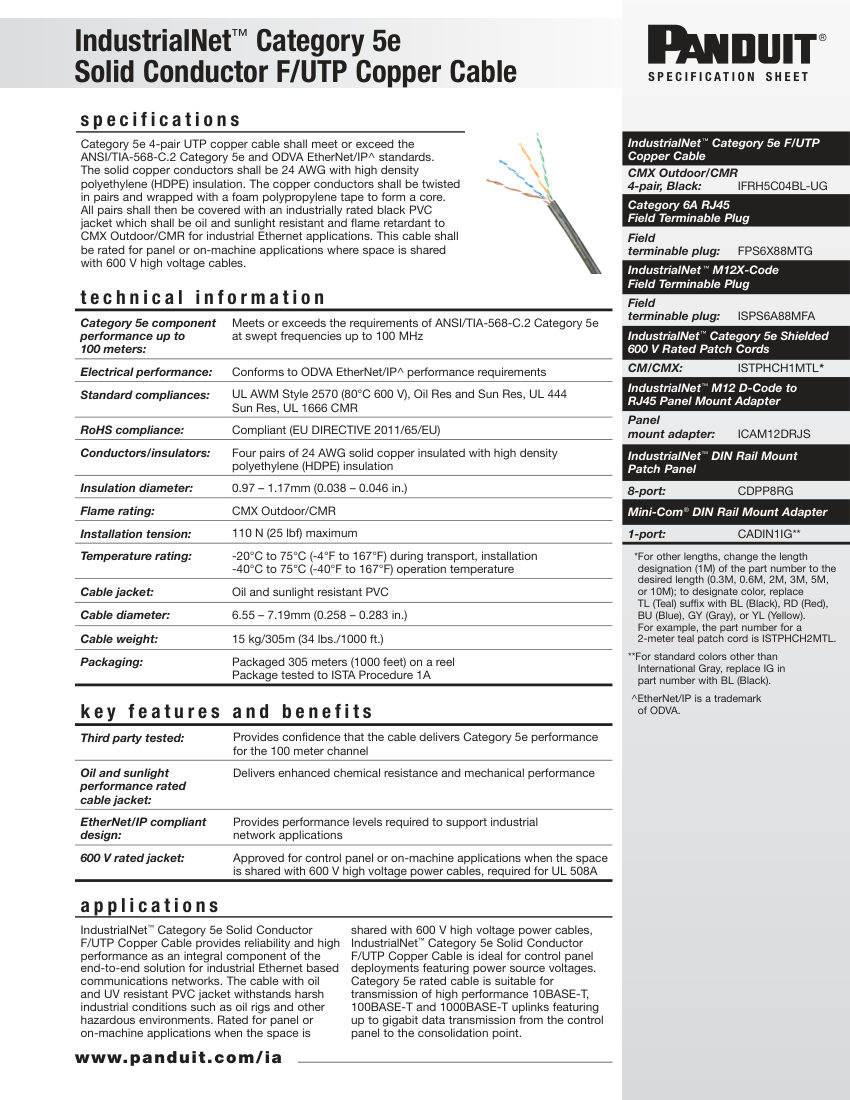

Panduit COSP438--SA-ENG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
COSP438--SA-ENG
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCOSP438--SA-ENG
DescriptionPanduit Category 5e F/UTP Copper Cable (Industrial Ethernet Cable). Model COSP438--SA-ENG. Category 5e performance up to 100 MHz; Flame rating CMX Outdoor/CMR; Oil and sunlight resistant jacket; Temperature rating -40°C to 75°C operation. material: Solid Copper, HDPE Insulation, PVC Jacket
Connection size24 AWG
FinishBlack
Dimensions6.55 – 7.19mm diameter
ComplianceANSI/TIA-568-C.2, ODVA EtherNet/IP, UL AWM Style 2570, RoHS
Voltage600 V.
  • Official cut sheet, indexed
  • Auto-matched to your schedule
  • Cover + TOC, one click
