PanduitToolCT-3001

Name: Panduit Tool (CT-3001)
Brand: Panduit
SKU: CT-3001

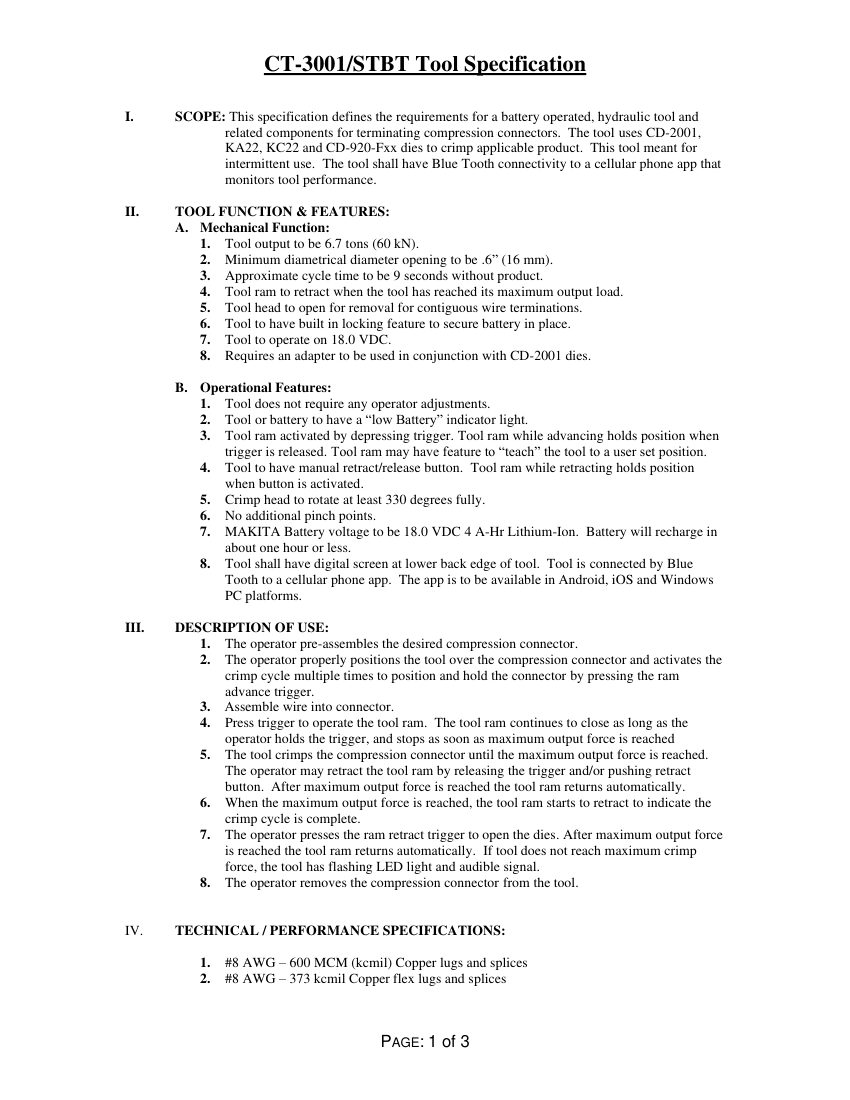

Panduit Battery operated hydraulic crimping tool (Crimping Tools). Model CT-3001/STBT. Output force: 6.7 tons (60 kN)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	CT-3001
Description	Panduit Battery operated hydraulic crimping tool (Crimping Tools). Model CT-3001/STBT. Output force: 6.7 tons (60 kN)
Battery	18.0 VDC 4 A-Hr Lithium-Ion (Makita compatible)
Lifetime performance	50,000 cycles minimum
Weight	6.8 lbs (3.1 kg). connectionSize: #8 AWG – 600 MCM Copper; #8 AWG – 373 kcmil Copper flex; #6 AWG – 350 kcmil Aluminum; 10 mm2 – 240 mm2 Copper Class 2R; 10 mm2 – 95 mm2 Class 5/6
End connection	Compression connectors
Pressure Rating	6.7 tons (60 kN)
Finish	Black housing
Mounting	Handheld
Dimensions	17" L x 2.9" W x 4.9" H (430 x 75 x 125 mm).
