PanduitPROFINET Type B/C Category 5e SF/UTP Copper CableESFLHT5C02FGR-X

Panduit Industrial Ethernet Cable (PROFINET Type B/C Category 5e SF/UTP Copper Cable). Model ESFLHT5C02FGR-X. Category 5e 2-pair SF/UTP copper cable; 22 AWG stranded copper conductors; Rated for -40°C to 75°C; Oil and sunlight resistant TPE jacket. material: Stranded copper conductors, HDPE insulation, TPE jacket

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFESFLHT5C02FGR-X.pdfData sheet

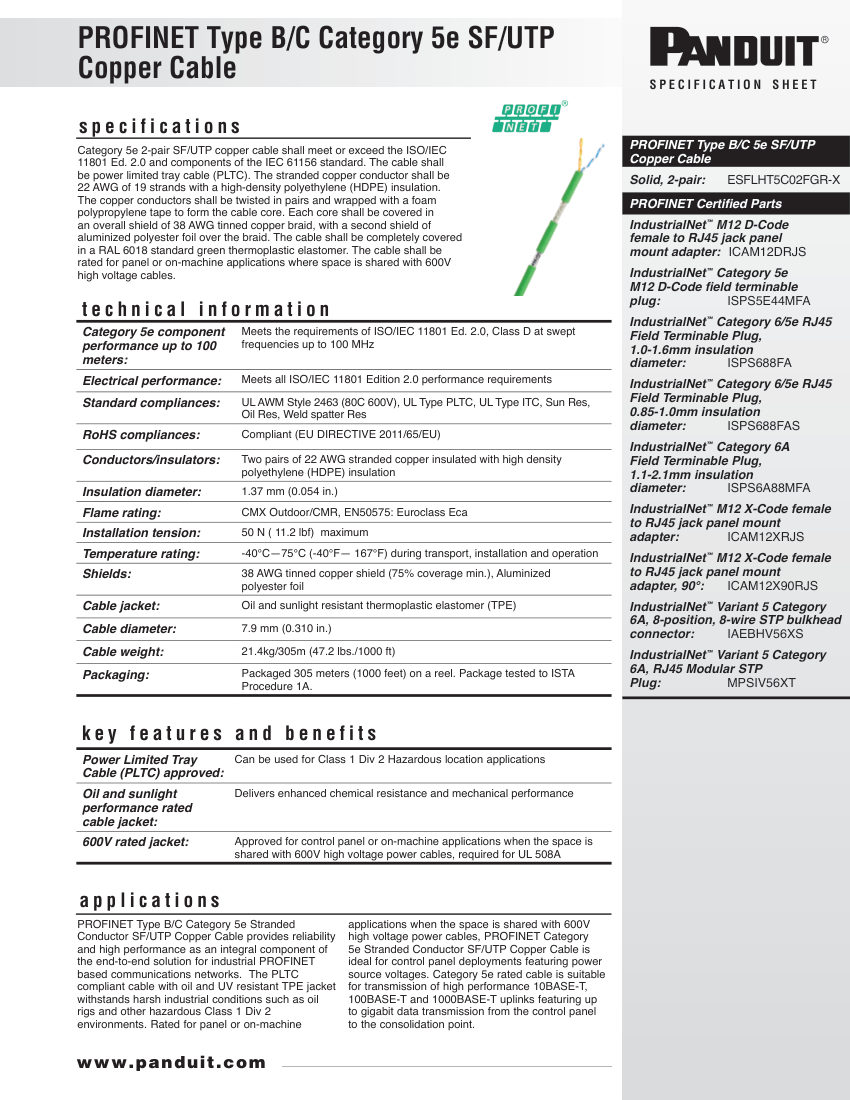

Panduit ESFLHT5C02FGR-X cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
ESFLHT5C02FGR-X
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberESFLHT5C02FGR-X
DescriptionPanduit Industrial Ethernet Cable (PROFINET Type B/C Category 5e SF/UTP Copper Cable). Model ESFLHT5C02FGR-X. Category 5e 2-pair SF/UTP copper cable; 22 AWG stranded copper conductors; Rated for -40°C to 75°C; Oil and sunlight resistant TPE jacket. material: Stranded copper conductors, HDPE insulation, TPE jacket
FinishRAL 6018 Green
MountingPanel or on-machine
Dimensions7.9 mm diameter
ComplianceISO/IEC 11801 Ed. 2.0, IEC 61156, UL AWM Style 2463, UL Type PLTC, RoHS
Voltage600V.
