PanduitPROFINET Type A Category 5e SF/UTP Copper CableESFLHT5C02GR-X

Panduit PROFINET Type A Category 5e SF/UTP Copper Cable (Network Cable). Model ESFLHT5C02GR-X. 22 AWG solid copper conductors; 38 AWG tinned copper braid and aluminized polyester foil shield; Rated for -40°C to 75°C; Oil and sunlight resistant TPE jacket. material: Solid copper conductors, HDPE insulation, TPE jacket

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFESFLHT5C02GR-X.pdfData sheet

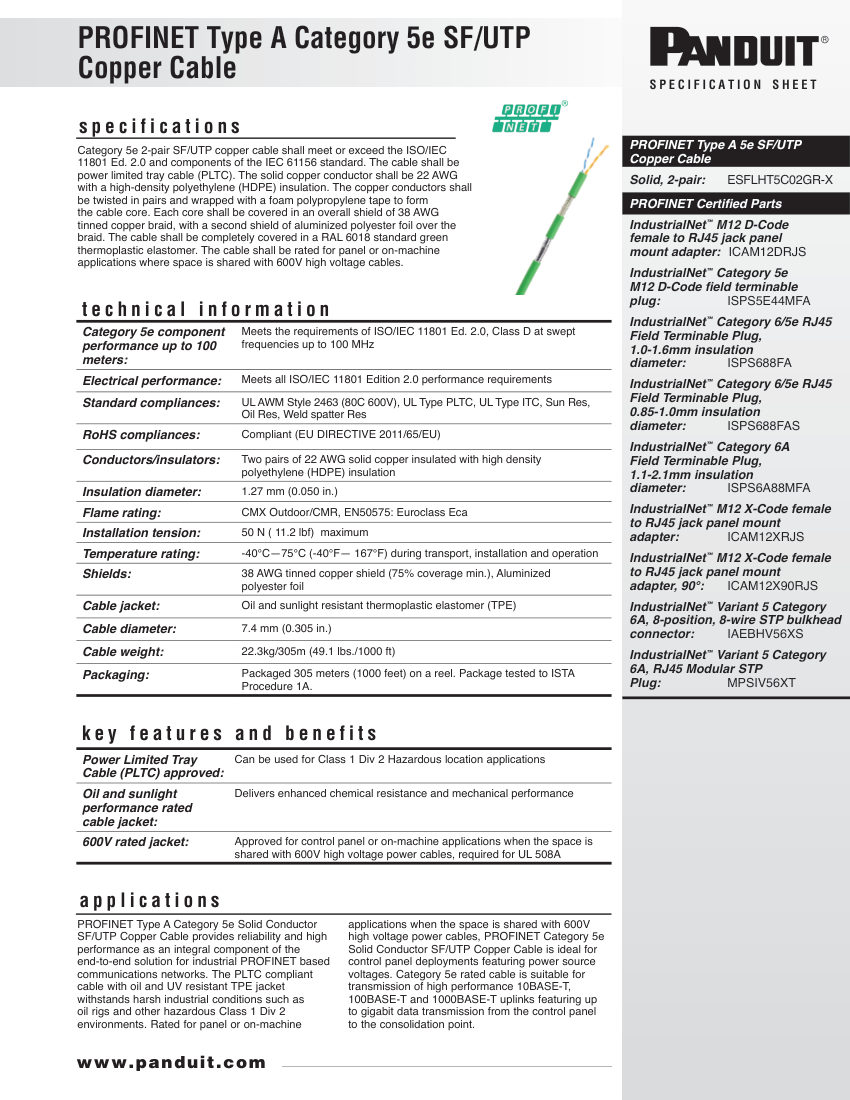

Panduit ESFLHT5C02GR-X cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
ESFLHT5C02GR-X
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberESFLHT5C02GR-X
DescriptionPanduit PROFINET Type A Category 5e SF/UTP Copper Cable (Network Cable). Model ESFLHT5C02GR-X. 22 AWG solid copper conductors; 38 AWG tinned copper braid and aluminized polyester foil shield; Rated for -40°C to 75°C; Oil and sunlight resistant TPE jacket. material: Solid copper conductors, HDPE insulation, TPE jacket
FinishRAL 6018 Green
MountingPanel or on-machine
Dimensions7.4 mm diameter
ComplianceISO/IEC 11801 Ed. 2.0, IEC 61156, UL AWM Style 2463, UL Type PLTC, RoHS
Voltage600V.
