Panduit Breakout Trunk Cable Assembly (Fiber Optic Cable Assemblies). Model FBS P233 WW ENG. Fiber Types: OS2, OM4, OM4+, OM5

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFeuroclass-base8-lc-breakout-trunk-cable-assemblies-fbsp233-w.pdfData sheet

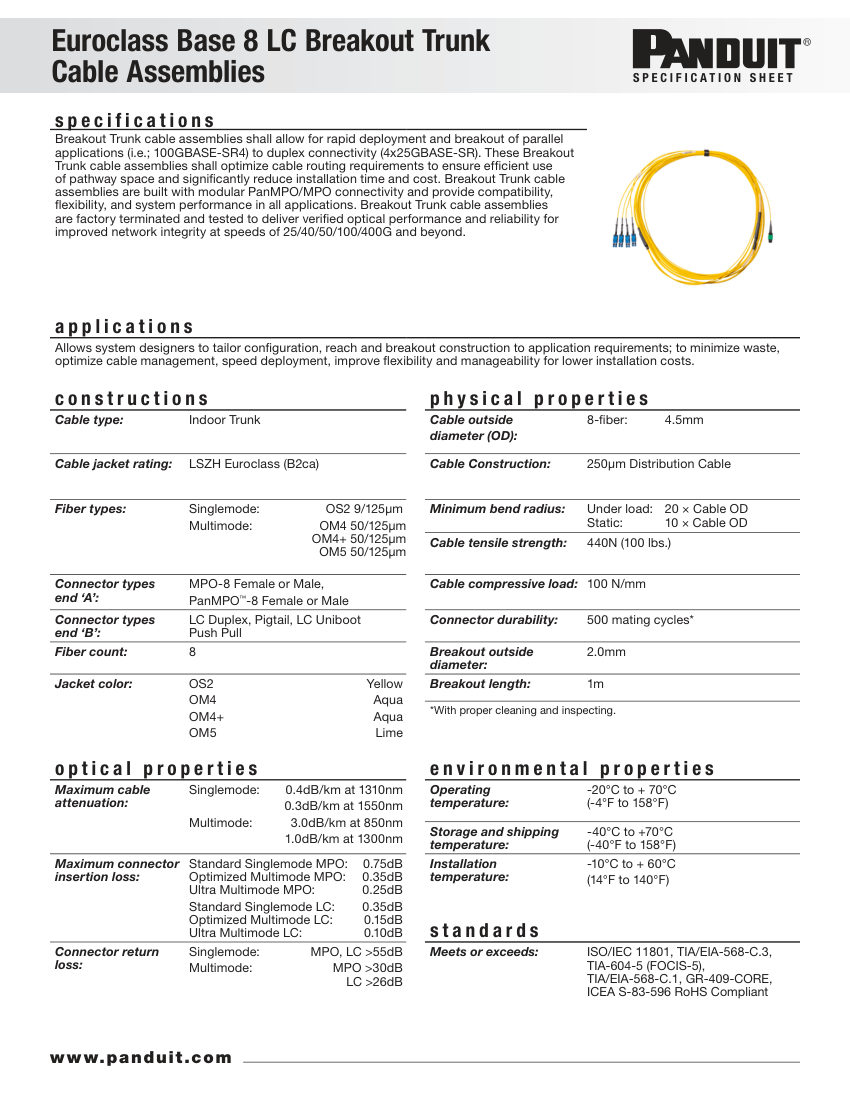

Panduit euroclass-base8-lc-breakout-trunk-cable-assemblies-fbsp233-w cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
euroclass-base8-lc-breakout-trunk-cable-assemblies-fbsp233-w
Product type
Network Infrastructure
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numbereuroclass-base8-lc-breakout-trunk-cable-assemblies-fbsp233-w
DescriptionPanduit Breakout Trunk Cable Assembly (Fiber Optic Cable Assemblies). Model FBS P233 WW ENG. Fiber Types: OS2, OM4, OM4+, OM5
Cable Construction250μm Distribution Cable
Operating Temperature-20°C to +70°C
Connector Durability500 mating cycles. material: LSZH Euroclass (B2ca)
Connection size8-fiber
End connectionMPO-8/PanMPO-8 (End A), LC Duplex/Pigtail/Uniboot (End B)
DimensionsCable OD: 4.5mm, Breakout OD: 2.0mm, Breakout Length: 1m
ComplianceISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5, TIA/EIA-568-C.1, GR-409-CORE, ICEA S-83-596, RoHS.
