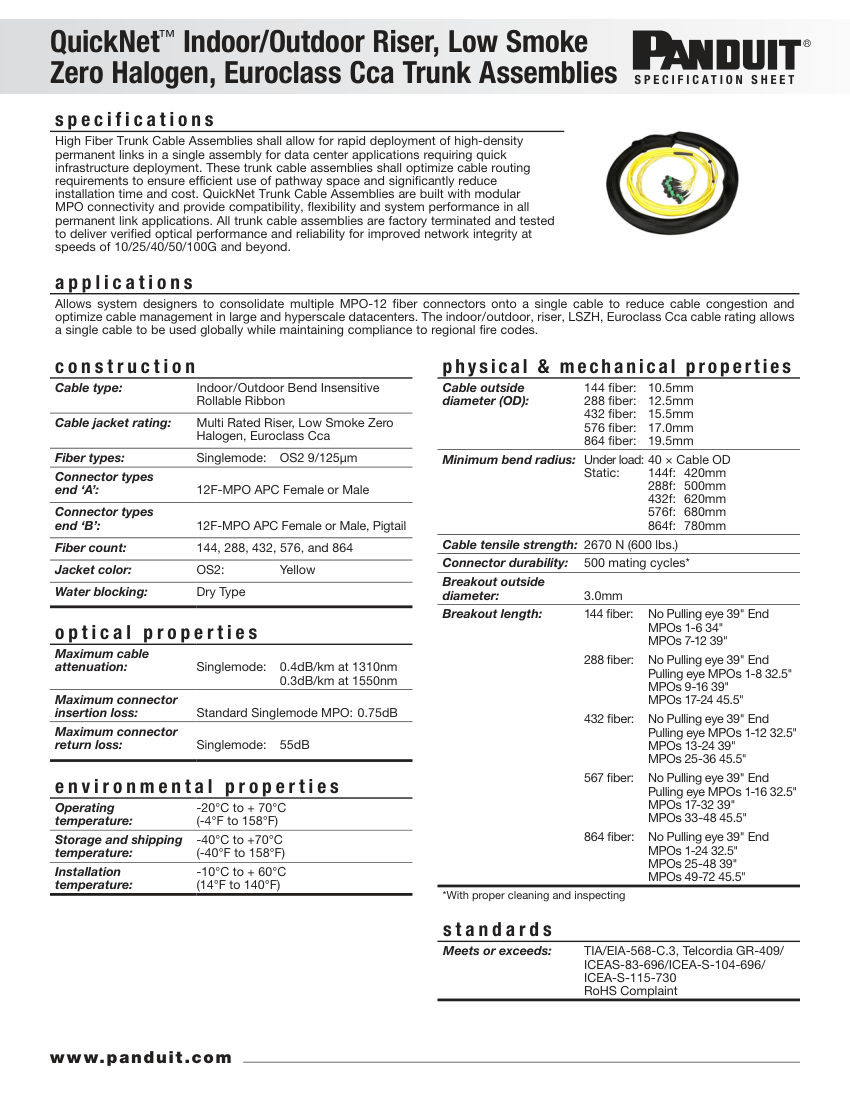

PanduitQuicknet High Fiber Count I/O Riser, LSZH, CCA TrunkF8RNM5E5EAAM100

Name: Panduit Quicknet High Fiber Count I/O Riser, LSZH, CCA Trunk (F8RNM5E5EAAM100)
Brand: Panduit
SKU: F8RNM5E5EAAM100

Panduit High Fiber Count Trunk Cable Assembly (Fiber Optic Cables). Model F8RNM5E5EAAM100. Fiber counts: 144, 288, 432, 576, 864

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	F8RNM5E5EAAM100
Description	Panduit High Fiber Count Trunk Cable Assembly (Fiber Optic Cables). Model F8RNM5E5EAAM100. Fiber counts: 144, 288, 432, 576, 864
Fiber type	Singlemode OS2 9/125μm
Max attenuation	0.4dB/km at 1310nm, 0.3dB/km at 1550nm
Operating temperature	-20°C to +70°C. material: LSZH, Euroclass Cca
Connection size	MPO-12
End connection	MPO-12 APC Female or Male
Finish	Yellow Jacket
Dimensions	OD 10.5mm (144f) to 19.5mm (864f)
Compliance	TIA/EIA-568-C.3, Telcordia GR-409, RoHS.
