PanduitFBCS26--WW-UKE

Panduit Indoor/Outdoor Steel Armoured Fibre Optic Cable (Fibre Optic Cable). Model FBCS26--WW-UKE. Up to 24 fibres (250µm coated) in central loose tube; Gel-filled for superior water blocking

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFBCS26--WW-UKE.pdfData sheet

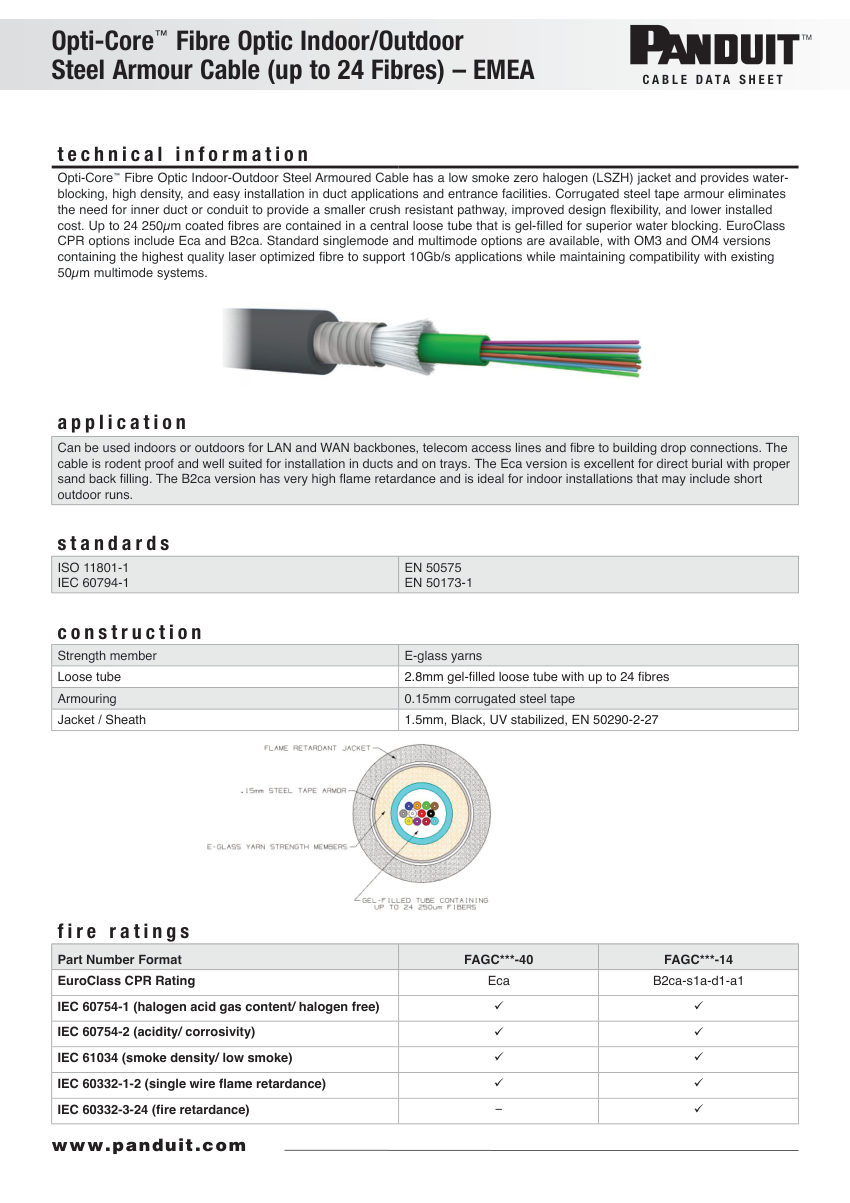

Panduit FBCS26--WW-UKE cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
FBCS26--WW-UKE
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFBCS26--WW-UKE
DescriptionPanduit Indoor/Outdoor Steel Armoured Fibre Optic Cable (Fibre Optic Cable). Model FBCS26--WW-UKE. Up to 24 fibres (250µm coated) in central loose tube; Gel-filled for superior water blocking
Tensile strength1000 N operation, 3000 N installation
Temperature range-40°C to +70°C. material: LSZH jacket, corrugated steel tape armour, E-glass yarns
FinishBlack, UV stabilized
MountingIndoor/Outdoor, Duct, Tray, Direct Burial (Eca)
Dimensions8.5mm O.D., 0.15mm armour, 1.5mm jacket
ComplianceEuroClass Eca, B2ca-s1a-d1-a1, ISO 11801-1, EN 50575, IEC 60794-1.
