DIV 27 · COMMUNICATIONSCOMMUNICATIONSCUT SHEET INDEXED

PanduitOpti-Core™ Fiber Optic Distribution CableFBDS17-WW-ENG

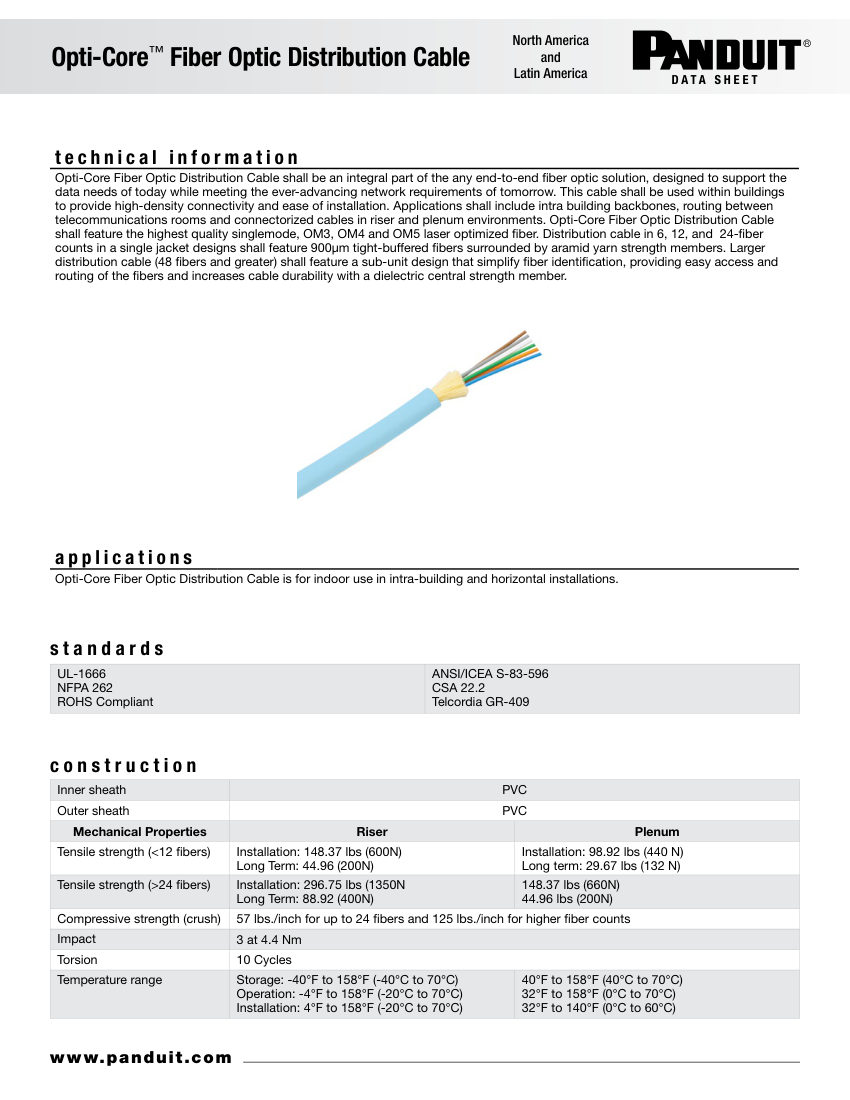

Name: Panduit Opti-Core™ Fiber Optic Distribution Cable (FBDS17-WW-ENG)
Brand: Panduit
SKU: FBDS17-WW-ENG

Panduit Fiber Optic Distribution Cable (Fiber Optic Cable). Model FBDS17-WW-ENG. Fiber counts available: 6, 12, 24, 48, 72, 96, 144

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	FBDS17-WW-ENG
Description	Panduit Fiber Optic Distribution Cable (Fiber Optic Cable). Model FBDS17-WW-ENG. Fiber counts available: 6, 12, 24, 48, 72, 96, 144
Fiber types	Singlemode (G.652.D), OM3, OM4, OM5; Rated for Riser and Plenum environments
Operating temperature	-20°C to 70°C (Riser), 0°C to 70°C (Plenum). material: PVC inner and outer sheath, aramid yarn strength members
Mounting	Indoor, intra-building, riser, plenum
Dimensions	Diameter 0.20-0.95 inches depending on fiber count and rating
Compliance	UL-1666, ANSI/ICEA S-83-596, NFPA 262, CSA 22.2, ROHS, Telcordia GR-409.
