DIV 27 · COMMUNICATIONSCOMMUNICATIONSCUT SHEET INDEXED

PanduitFBDS39

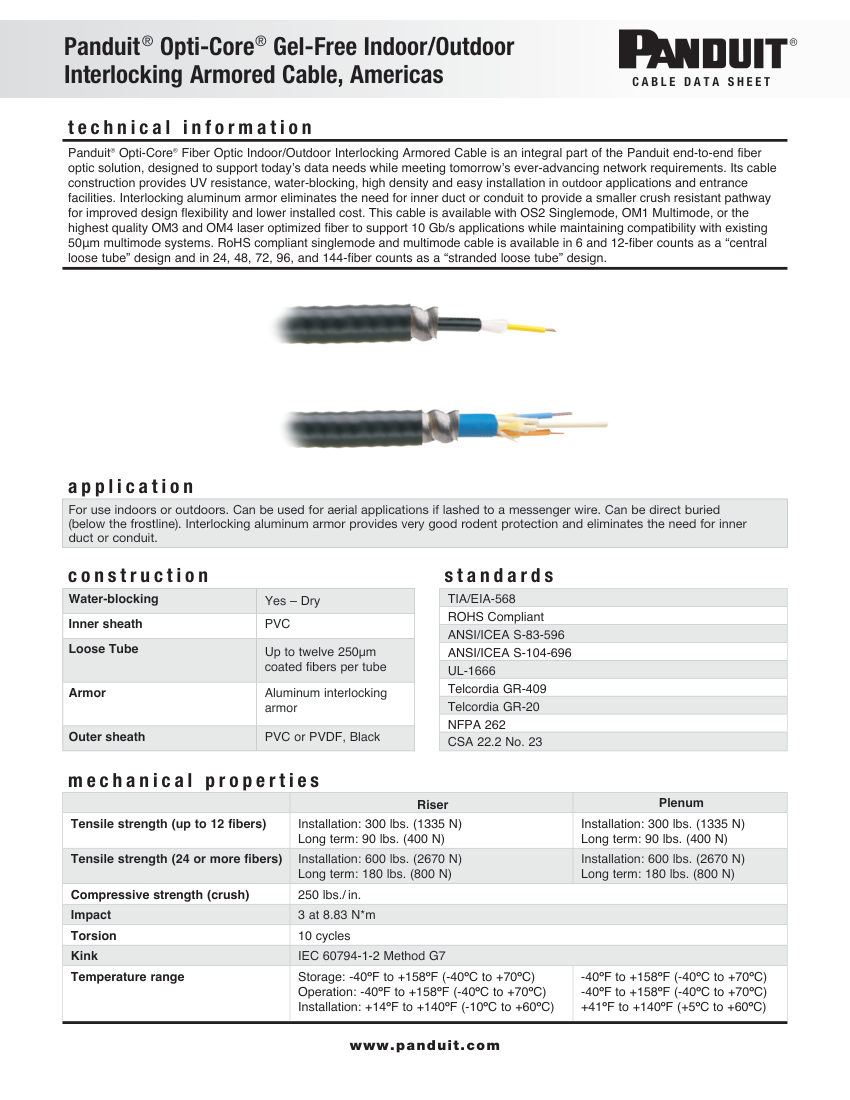

Name: Panduit FBDS39
Brand: Panduit
SKU: FBDS39

Panduit Gel-Free Indoor/Outdoor Interlocking Armored Cable (Fiber Optic Cable). Model FBDS39. Fiber counts: 6, 12, 24, 48, 72, 96, 144

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	FBDS39
Description	Panduit Gel-Free Indoor/Outdoor Interlocking Armored Cable (Fiber Optic Cable). Model FBDS39. Fiber counts: 6, 12, 24, 48, 72, 96, 144
Fiber types	OS2 Singlemode, OM1, OM3, OM4 Multimode; Water-blocking: Dry (Gel-Free); Tensile strength (12 fibers): 300 lbs installation, 90 lbs long term. material: Aluminum interlocking armor, PVC or PVDF outer sheath
Finish	Black
Mounting	Indoor/Outdoor, Direct Buried, Aerial
Dimensions	0.56-0.76 in diameter (12-96 fiber counts)
Compliance	TIA/EIA-568, ROHS, ANSI/ICEA S-83-596, UL-1666, Telcordia GR-409, Telcordia GR-20, NFPA 262, CSA 22.2 No. 23.
