DIV 27 · COMMUNICATIONSCOMMUNICATIONSCUT SHEET INDEXED

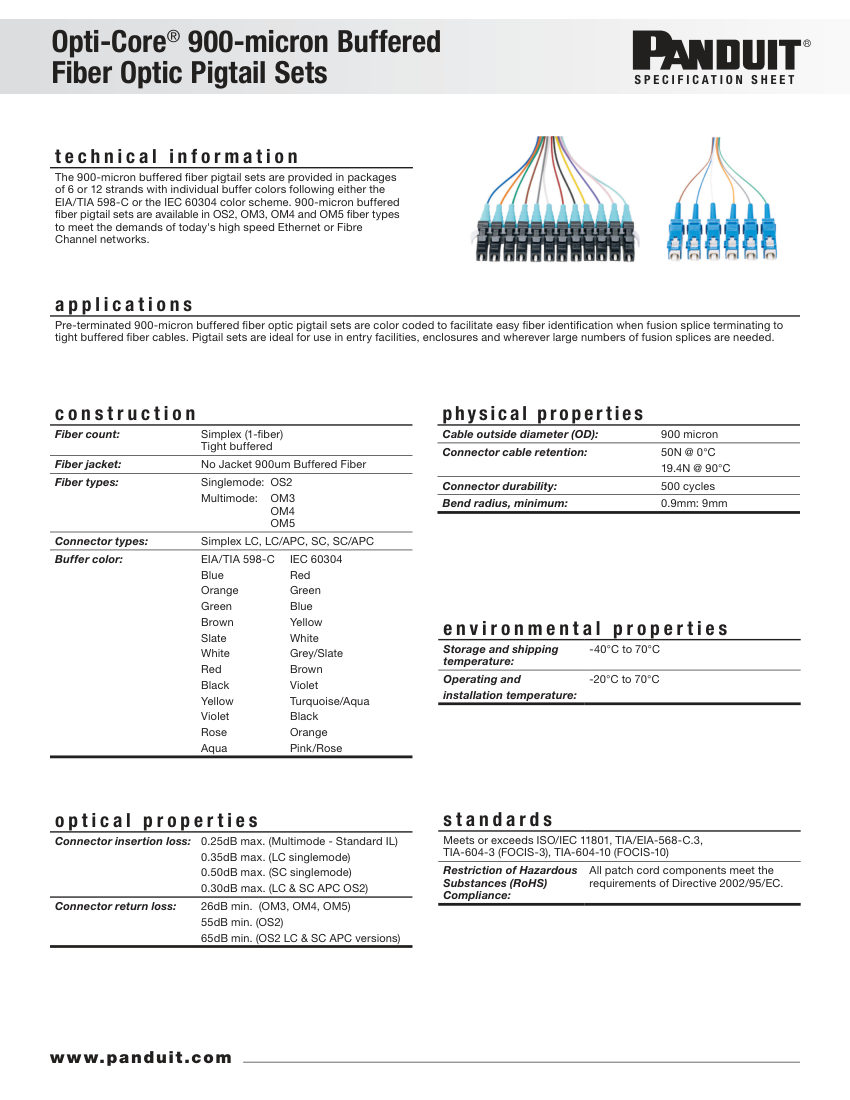

PanduitOpti-Core® 900-micron Buffered Fiber Optic Pigtail SetsFBSP139--SA-ENG

Name: Panduit Opti-Core® 900-micron Buffered Fiber Optic Pigtail Sets (FBSP139--SA-ENG)
Brand: Panduit
SKU: FBSP139--SA-ENG

Panduit Fiber Optic Pigtail Set (Fiber Optic Cabling). Model FBSP139--SA-ENG. Fiber types: OS2, OM3, OM4, OM5

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	FBSP139--SA-ENG
Description	Panduit Fiber Optic Pigtail Set (Fiber Optic Cabling). Model FBSP139--SA-ENG. Fiber types: OS2, OM3, OM4, OM5
Connector insertion loss	0.25dB max (Multimode), 0.35dB max (LC SM), 0.50dB max (SC SM)
Connector return loss	26dB min (MM), 55dB min (OS2), 65dB min (OS2 APC)
Operating temperature	-20°C to 70°C. material: 900-micron buffered fiber
Connection size	Simplex (1-fiber)
End connection	LC, LC/APC, SC, SC/APC
Dimensions	900 micron OD
Compliance	ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3, TIA-604-10, RoHS.
