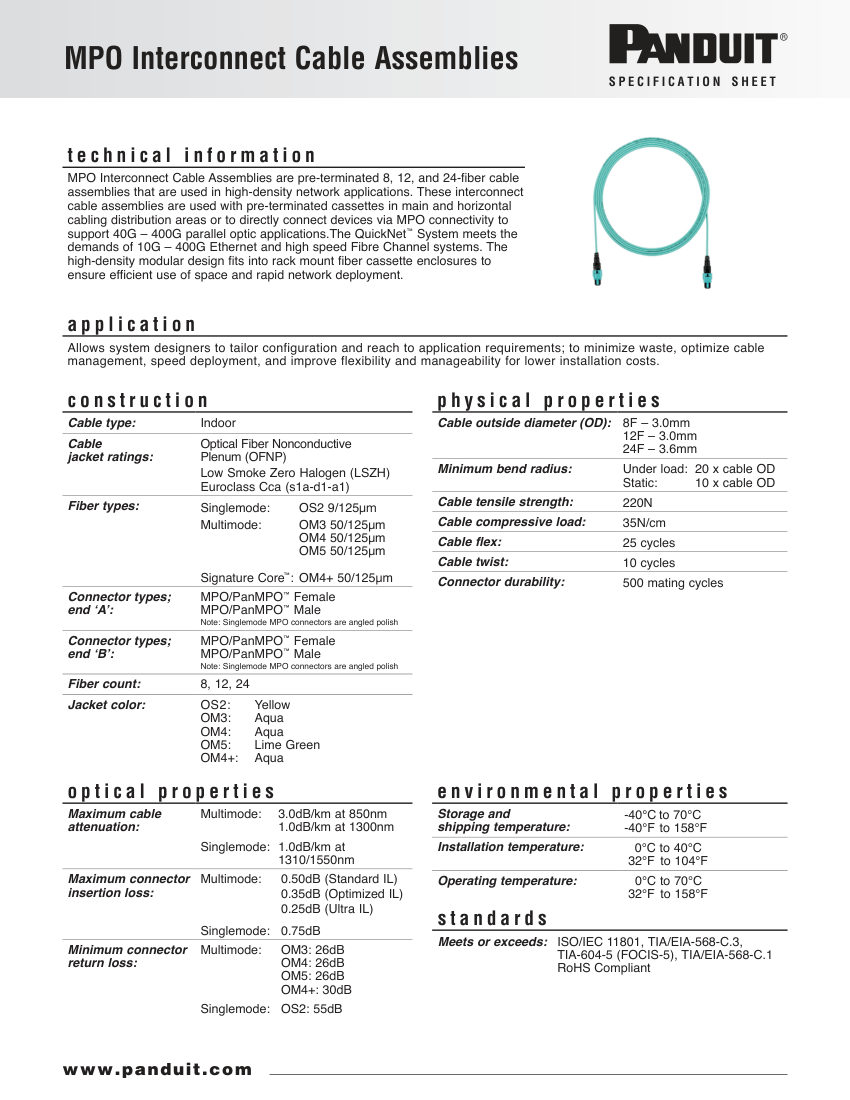

PanduitMPO Interconnect Cable AssembliesFBSP201

Name: Panduit MPO Interconnect Cable Assemblies (FBSP201)
Brand: Panduit
SKU: FBSP201

Panduit MPO Interconnect Cable Assembly (Fiber Optic Cabling). Model FBSP201. Fiber types: OS2, OM3, OM4, OM5, OM4+

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	FBSP201
Description	Panduit MPO Interconnect Cable Assembly (Fiber Optic Cabling). Model FBSP201. Fiber types: OS2, OM3, OM4, OM5, OM4+
Jacket ratings	OFNP, LSZH, Euroclass Cca; Max connector insertion loss: 0.25dB (Ultra IL) to 0.75dB (SM)
Min connector return loss	26dB (MM) to 55dB (SM). material: Optical Fiber Nonconductive
Connection size	8, 12, 24 fibers
End connection	MPO/PanMPO Male/Female
Mounting	Rack mount fiber cassette enclosures
Dimensions	OD 3.0mm (8F/12F), 3.6mm (24F)
Compliance	ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5, RoHS.
