PanduitFBSP207

Panduit Trunk Cable Assembly (Fiber Optic Cable). Model FBSP207. Fiber Type: OS2 Singlemode 9/125μm

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFBSP207.pdfData sheet

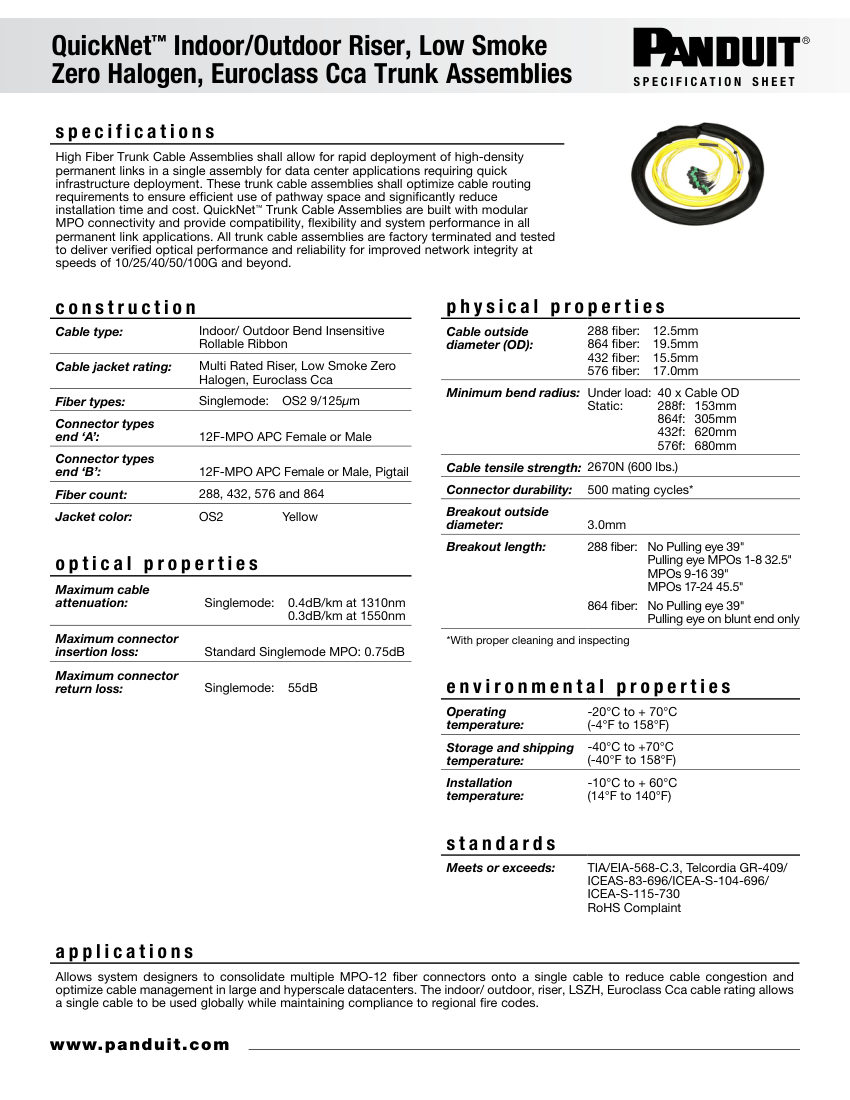

Panduit FBSP207 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
FBSP207
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFBSP207
DescriptionPanduit Trunk Cable Assembly (Fiber Optic Cable). Model FBSP207. Fiber Type: OS2 Singlemode 9/125μm
Fiber Counts288, 432, 576, 864
Cable RatingIndoor/Outdoor Riser, Euroclass Cca
Max Attenuation0.4dB/km @ 1310nm, 0.3dB/km @ 1550nm. material: Low Smoke Zero Halogen (LSZH)
Connection sizeMPO-12
End connectionMPO-12 APC Female or Male
DimensionsOD 12.5mm (288f), 15.5mm (432f), 17.0mm (576f), 19.5mm (864f)
ComplianceTIA/EIA-568-C.3, Telcordia GR-409, RoHS.
