DIV 27 · COMMUNICATIONSCOMMUNICATIONSCUT SHEET INDEXED

PanduitFlexCore Front Access CassettesFBSP209--WW-ENG

Panduit Fiber Optic Cassette (FlexCore). Model FBSP209--WW-ENG. Fiber types: OM4, OM5, OM4+ Sig Core, OS2

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFBSP209--WW-ENG.pdfData sheet

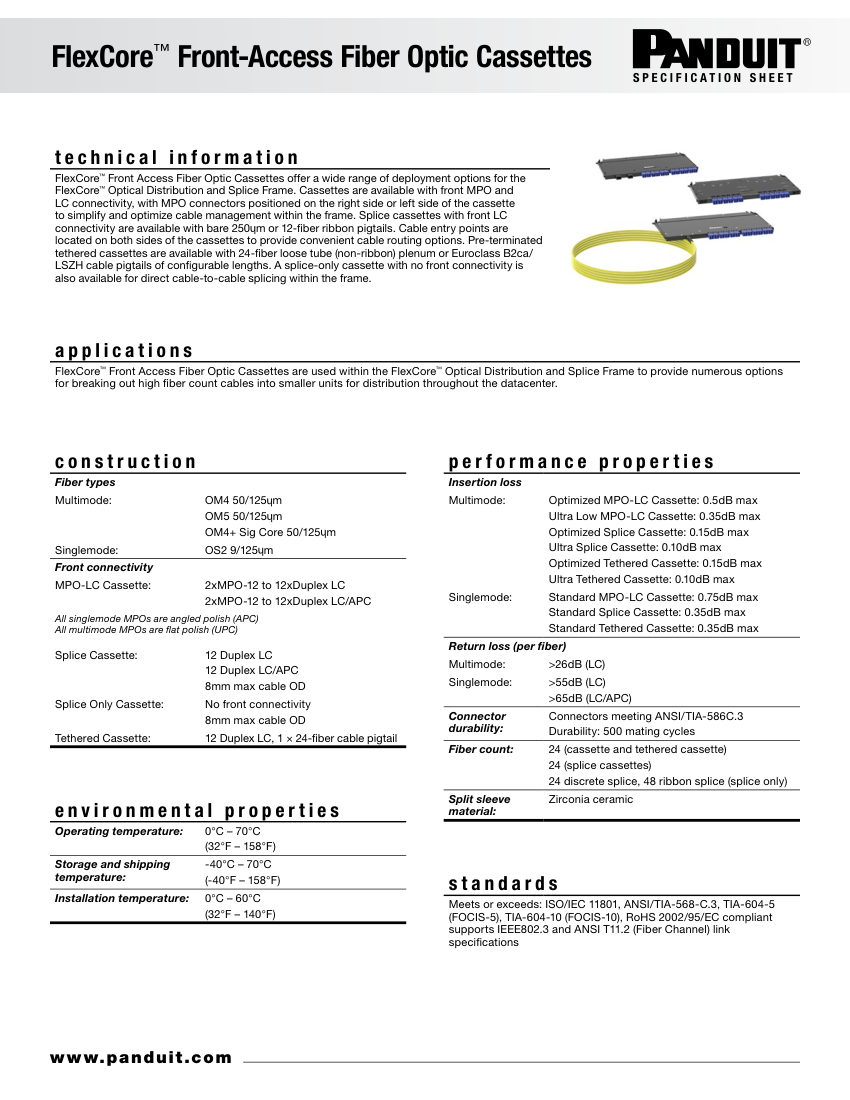

Panduit FBSP209--WW-ENG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
FBSP209--WW-ENG
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFBSP209--WW-ENG
DescriptionPanduit Fiber Optic Cassette (FlexCore). Model FBSP209--WW-ENG. Fiber types: OM4, OM5, OM4+ Sig Core, OS2
Insertion loss0.10dB to 0.75dB max depending on type
Return loss>26dB (Multimode LC), >55dB (Singlemode LC), >65dB (Singlemode LC/APC)
Operating temperature0°C – 70°C. material: Zirconia ceramic split sleeve
Connection size24-fiber
End connectionMPO, LC, LC/APC
MountingFront Access
ComplianceISO/IEC 11801, ANSI/TIA-568-C.3, TIA-604-5, TIA-604-10, RoHS 2002/95/EC.
