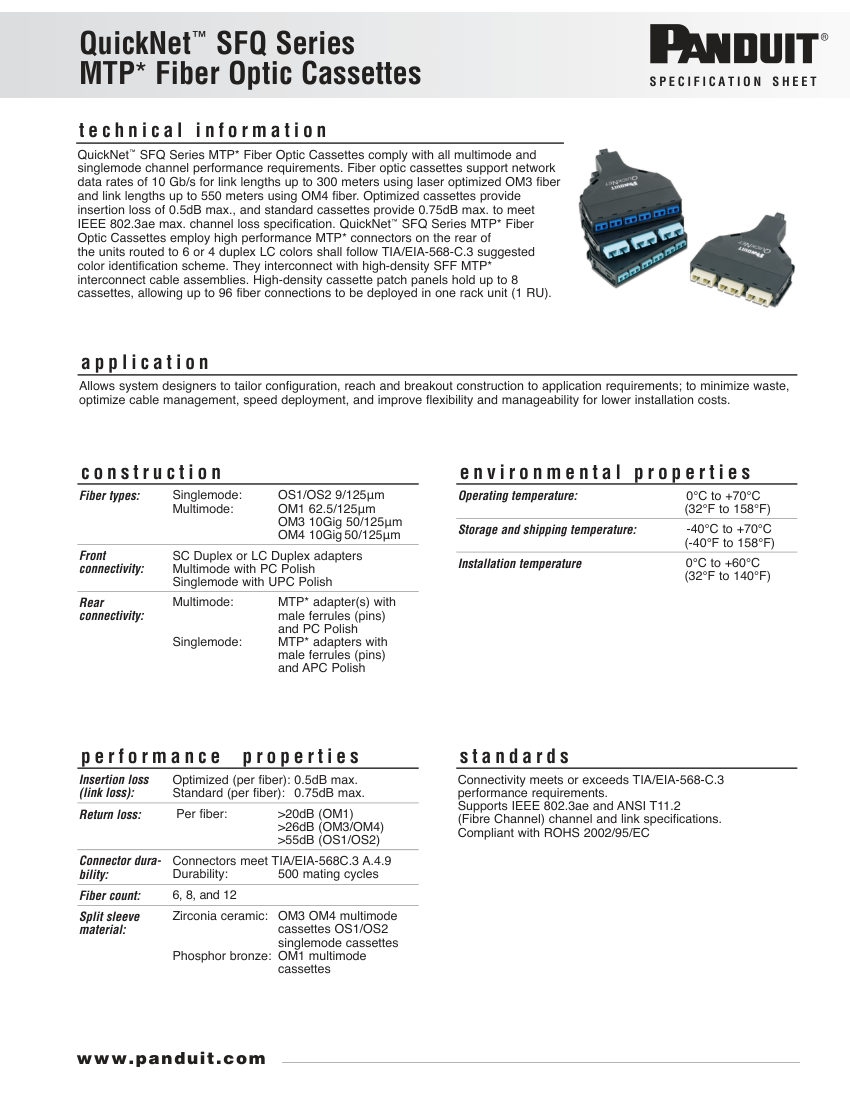

PanduitQuicknet SFQ CassetteFBSP64--WW-ENG

Name: Panduit Quicknet SFQ Cassette (FBSP64--WW-ENG)
Brand: Panduit
SKU: FBSP64--WW-ENG

Panduit MTP Fiber Optic Cassette (QuickNet SFQ Series). Model D-FBSP64--WW-ENG. Supports 10 Gb/s data rates up to 300m (OM3) or 550m (OM4)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	FBSP64--WW-ENG
Description	Panduit MTP Fiber Optic Cassette (QuickNet SFQ Series). Model D-FBSP64--WW-ENG. Supports 10 Gb/s data rates up to 300m (OM3) or 550m (OM4)
Insertion loss	0.5dB max (Optimized) or 0.75dB max (Standard)
Return loss	>20dB (OM1), >26dB (OM3/OM4), >55dB (OS1/OS2)
Connector durability	500 mating cycles. material: Zirconia ceramic or Phosphor bronze split sleeve
Connection size	6, 8, or 12 fiber
End connection	Front: SC/LC Duplex
Rear	MTP
Mounting	High-density cassette patch panel (1 RU)
Compliance	TIA/EIA-568-C.3, IEEE 802.3ae, ANSI T11.2, ROHS 2002/95/EC.
