PanduitQuickNet™ MTP* Fiber Optic Cassettes - FBSP71FBSP71

Panduit MTP Fiber Optic Cassette (Fiber Optic Cassettes). Model FBSP71. Insertion loss: 0.75dB max (Standard), 0.5dB max (Optimized), 0.35dB max (Ultra Low Loss)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFBSP71.pdfData sheet

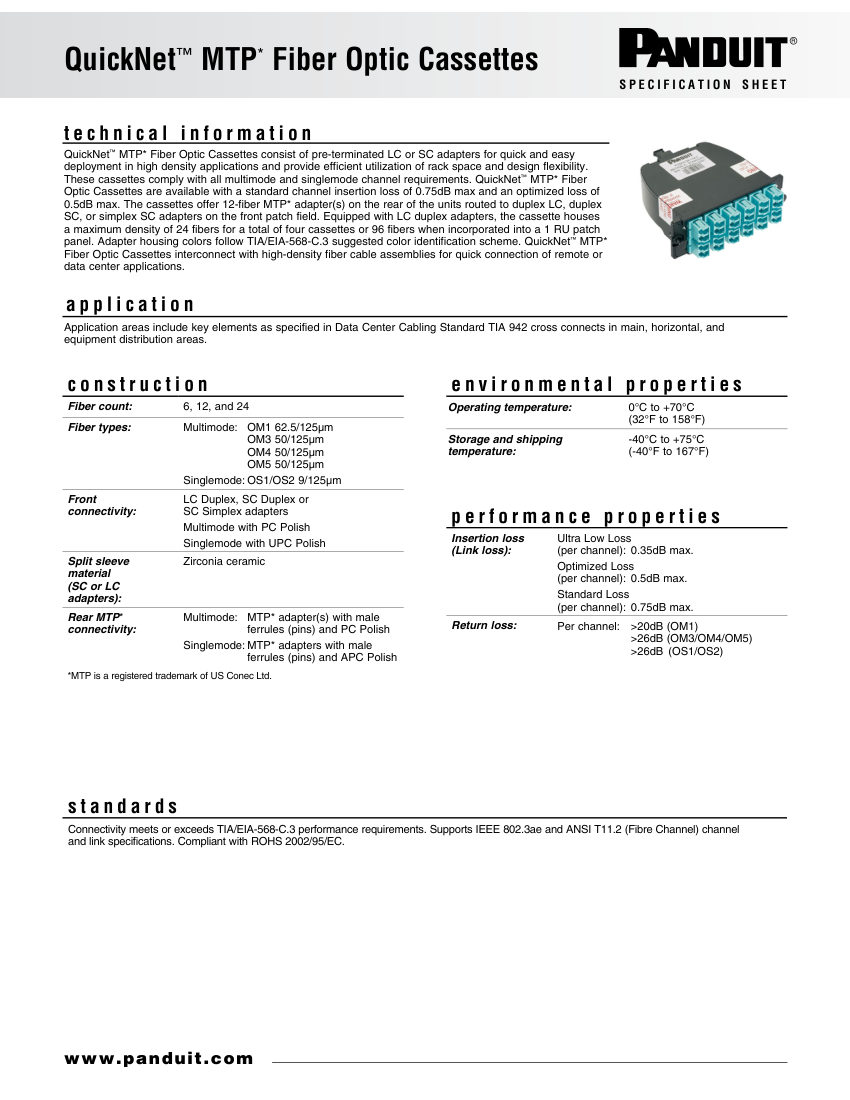

Panduit FBSP71 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
FBSP71
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFBSP71
DescriptionPanduit MTP Fiber Optic Cassette (Fiber Optic Cassettes). Model FBSP71. Insertion loss: 0.75dB max (Standard), 0.5dB max (Optimized), 0.35dB max (Ultra Low Loss)
Return loss>20dB (OM1), >26dB (OM3/OM4/OM5/OS1/OS2)
Operating temperature0°C to +70°C
Fiber typesMultimode (OM1, OM3, OM4, OM5) and Singlemode (OS1/OS2). material: Zirconia ceramic split sleeve
Connection size12-fiber MTP rear; 6, 12, or 24 fiber total
End connectionFront: LC Duplex, SC Duplex, or SC Simplex
RearMTP
Mounting1 RU patch panel compatible
ComplianceTIA/EIA-568-C.3, IEEE 802.3ae, ANSI T11.2, ROHS 2002
