PanduitHD Flex CS CassettesFHCZ0-16-C2U

Panduit Fiber Optic Cassette (Fiber Optic Cabling). Model FHCZ0-16-C2U, FHC9N-16-C2U, FHCZO-16F-C2U, FHC9N-16F-C2U, FHCZO-36-C3U, FHC9N-36-C3U. Fiber count: 16 or 36

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFHCZ0-16-C2U.pdfData sheet

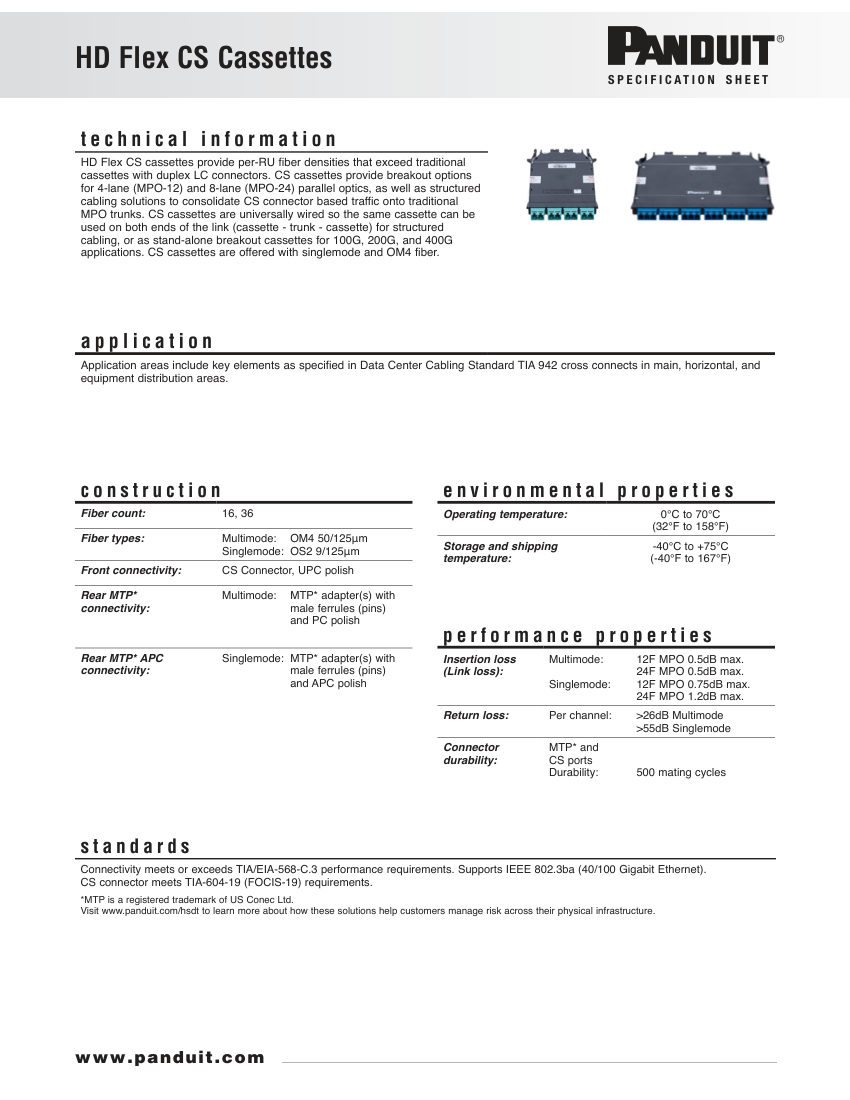

Panduit FHCZ0-16-C2U cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
FHCZ0-16-C2U
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFHCZ0-16-C2U
DescriptionPanduit Fiber Optic Cassette (Fiber Optic Cabling). Model FHCZ0-16-C2U, FHC9N-16-C2U, FHCZO-16F-C2U, FHC9N-16F-C2U, FHCZO-36-C3U, FHC9N-36-C3U. Fiber count: 16 or 36
Operating temperature0°C to 70°C
Insertion loss0.5dB max (MM), 0.75-1.2dB max (SM)
Return loss>26dB (MM), >55dB (SM). material: Fiber: OM4 50/125μm, OS2 9/125μm
Connection size16 or 36 fibers
End connectionFront: CS Connector (UPC)
RearMTP* (PC or APC)
MountingPanel Required: FLEX**06 or FLEX**12
Dimensions7.25 in (184.3 mm) width
ComplianceTIA/EIA-568-C.3, IEEE 802.3ba, TIA-604-19.

Also cataloged as: FHC9N-16-C2U, FHCZO-16F-C2U, FHC9N-16F-C2U, FHCZO-36-C3U, FHC9N-36-C3U, FH-CZ0, FH-C9N, FH-16, FH-16F, FH-36, FH-C2U
