PanduitFusion Splice MPO Fiber Optic ConnectorsFMPOF3SXMAQ

Panduit MPO Fusion Splice Connector (Fiber Optic Connectors). Model FMPOF3SXMAQ, FMPOM3SXMAQ, FMPOF3SSSGR, FMPOM3SSSGR, FMPOFRSSSGR, FMPOMRSSSGR, FMPOFRSXMAQ, FMPOMRSXMAQ. Compatible with 3.0mm round or bare-ribbon cable; Supports 9/125μm Singlemode (OS1/OS2) and 50/125μm Multimode (OM2, OM3, OM4)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFMPOF3SXMAQ.pdfData sheet

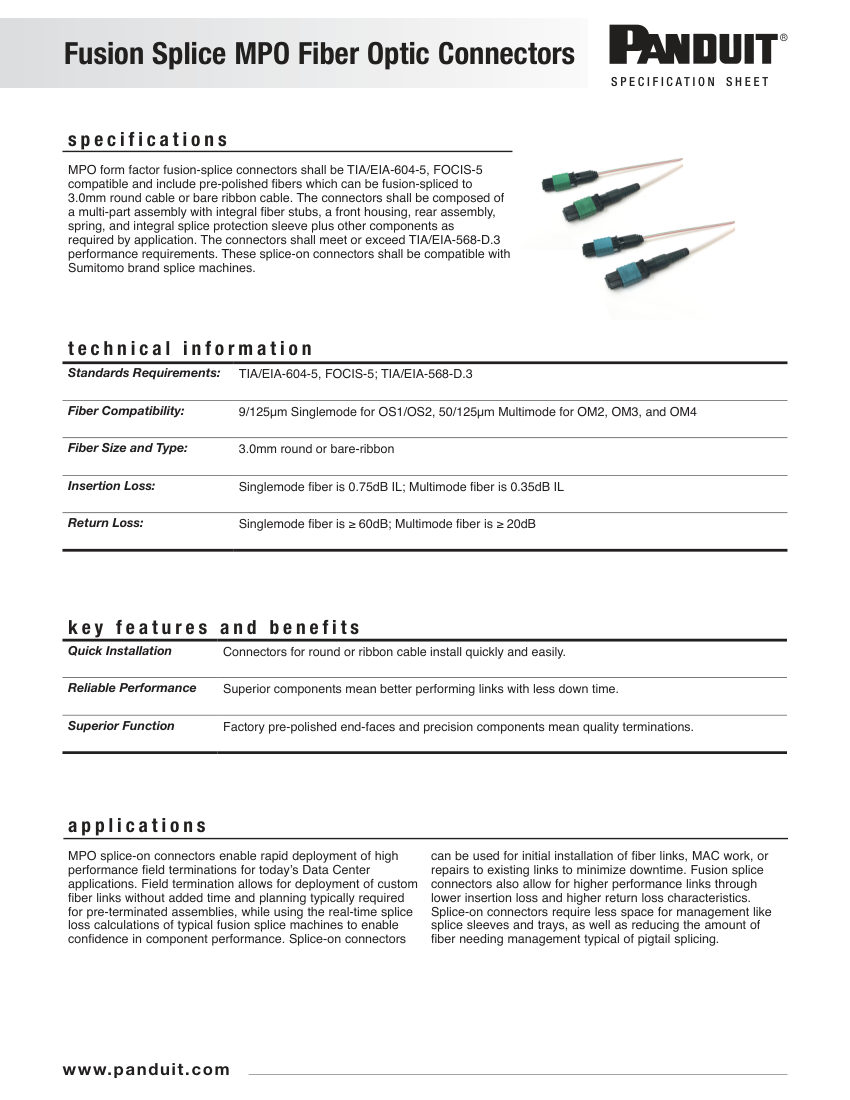

Panduit FMPOF3SXMAQ cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
FMPOF3SXMAQ
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFMPOF3SXMAQ
DescriptionPanduit MPO Fusion Splice Connector (Fiber Optic Connectors). Model FMPOF3SXMAQ, FMPOM3SXMAQ, FMPOF3SSSGR, FMPOM3SSSGR, FMPOFRSSSGR, FMPOMRSSSGR, FMPOFRSXMAQ, FMPOMRSXMAQ. Compatible with 3.0mm round or bare-ribbon cable; Supports 9/125μm Singlemode (OS1/OS2) and 50/125μm Multimode (OM2, OM3, OM4)
Insertion Loss0.75dB (Singlemode), 0.35dB (Multimode)
Return Loss≥ 60dB (Singlemode), ≥ 20dB (Multimode). connectionSize: MPO
End connectionFusion Splice
ComplianceTIA/EIA-604-5, FOCIS-5, TIA/EIA-568-D.3.

Also cataloged as: FMPOM3SXMAQ, FMPOF3SSSGR, FMPOM3SSSGR
