DIV 27 · COMMUNICATIONSCOMMUNICATIONSCUT SHEET INDEXED

PanduitFOGRZ12Y

Panduit Indoor/Outdoor Interlocking Armored Cable (Fiber Optic Cable). Model FOGRZ12Y (Example). Fiber counts available: 6, 12, 24, 48, 72, 96, 144; Supports OS2 Singlemode, OM1, OM3, and OM4 Multimode fibers; Tensile strength up to 600 lbs (2670 N) for 24+ fiber counts; Operating temperature range: -40°F to +158°F (-40°C to +70°C). material: Aluminum interlocking armor, PVC or PVDF outer sheath, Dry water-blocking

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFOGRZ12Y.pdfData sheet

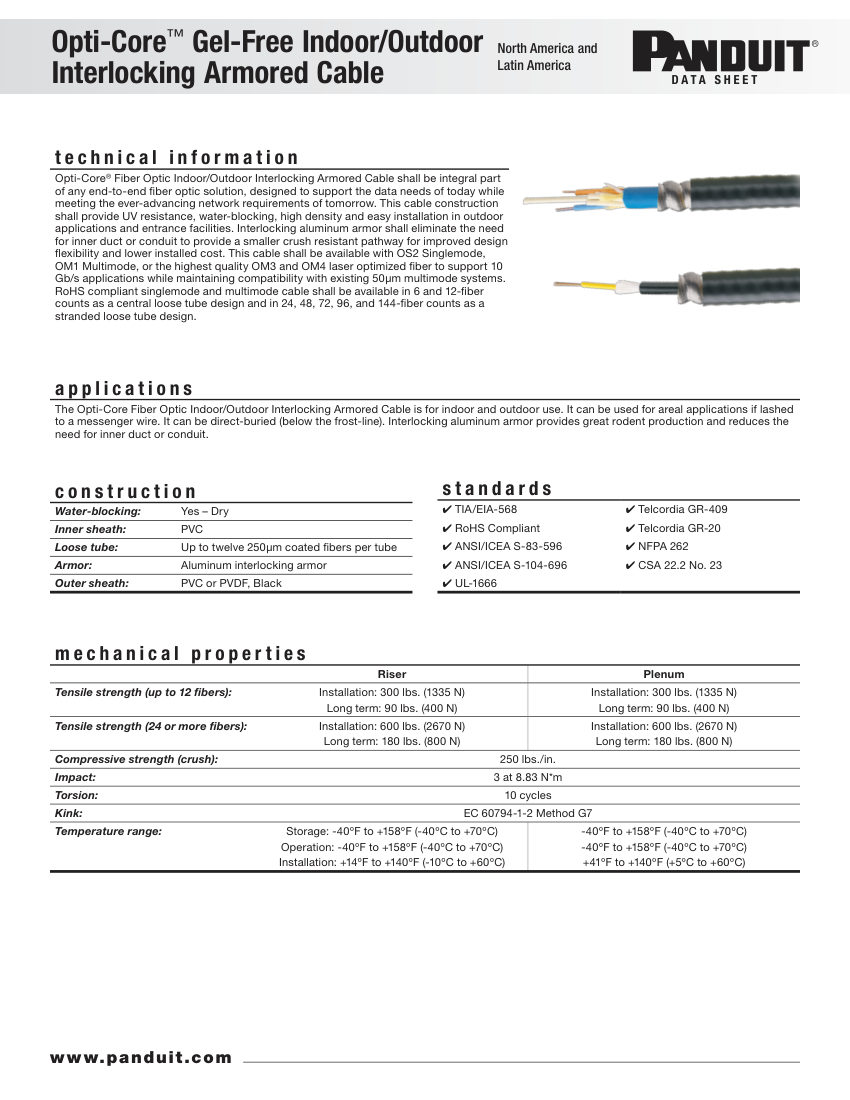

Panduit FOGRZ12Y cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
FOGRZ12Y
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFOGRZ12Y
DescriptionPanduit Indoor/Outdoor Interlocking Armored Cable (Fiber Optic Cable). Model FOGRZ12Y (Example). Fiber counts available: 6, 12, 24, 48, 72, 96, 144; Supports OS2 Singlemode, OM1, OM3, and OM4 Multimode fibers; Tensile strength up to 600 lbs (2670 N) for 24+ fiber counts; Operating temperature range: -40°F to +158°F (-40°C to +70°C). material: Aluminum interlocking armor, PVC or PVDF outer sheath, Dry water-blocking
FinishBlack
MountingDirect-buried, Areal, Riser, Plenum
DimensionsDiameter 0.56-0.76 inches depending on fiber count
ComplianceTIA/EIA-568, Telcordia GR-409, RoHS, ANSI/
