PanduitCable Entry Systems - Product Bulletin FRCB3-SA-ENGFRCB3-SA-ENG

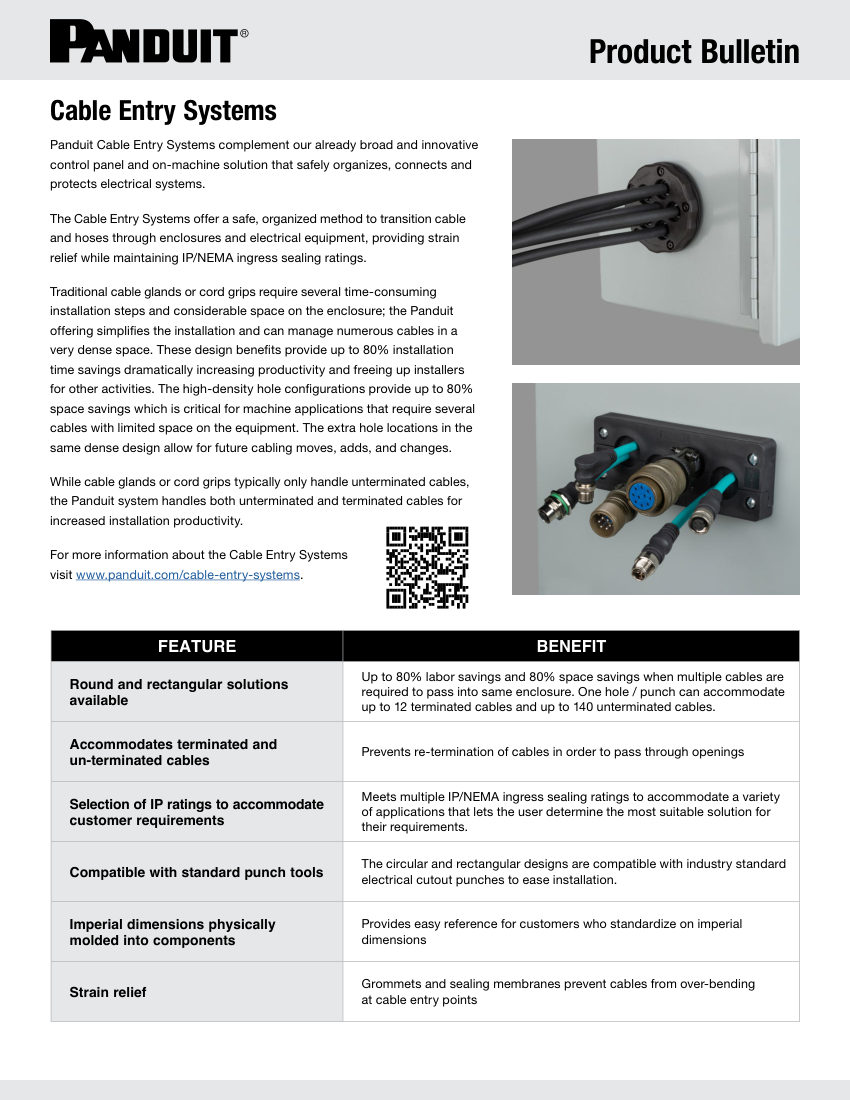

Name: Panduit Cable Entry Systems - Product Bulletin FRCB3-SA-ENG
Brand: Panduit
SKU: FRCB3-SA-ENG

Panduit Cable Entry Frame (Cable Entry Systems). Model CEST1/CEST2. Accommodates terminated and unterminated cables

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	FRCB3-SA-ENG
Description	Panduit Cable Entry Frame (Cable Entry Systems). Model CEST1/CEST2. Accommodates terminated and unterminated cables
Temperature rating	-30 °C to 100 °C; UV Resistant; Compatible with standard punch tools. material: Polypropylene and TPE
Connection size	0.08" – 1.18" cable diameters
End connection	Grommets
Mounting	4x 10-32 screws and nuts
Dimensions	Length 2.91"-5.83" (73.9-148.1 mm), Width 3.98"-4.76" (101.1-120.9 mm), Height 0.59" (15.0 mm)
Compliance	IP54, IP65, NEMA Type 1, 12, 4X, UL94V-0.
