PanduitOpti-Core® Indoor-Outdoor Riser Hybrid Powered Fiber CableFSHRB12-04S12C

Panduit Hybrid Powered Fiber Cable (Opti-Core). Model FSHRB12-04S12C, FSHRB12-06S12C, FSHRB02-02S12A. Singlemode ITU G.657.A2/B2 fiber with 12 AWG copper conductors; Supports 10 GbE to 400 GbE and PON applications; Gel-free water-blocking yarns for rugged outdoor use; Max DC resistance 1.62 Ohm/kft at 20°C. material: Black fire retardant PVC, 12 AWG THHN/THWN-2 solid copper, Aramid strength yarns

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFSHRB12-04S12C.pdfData sheet

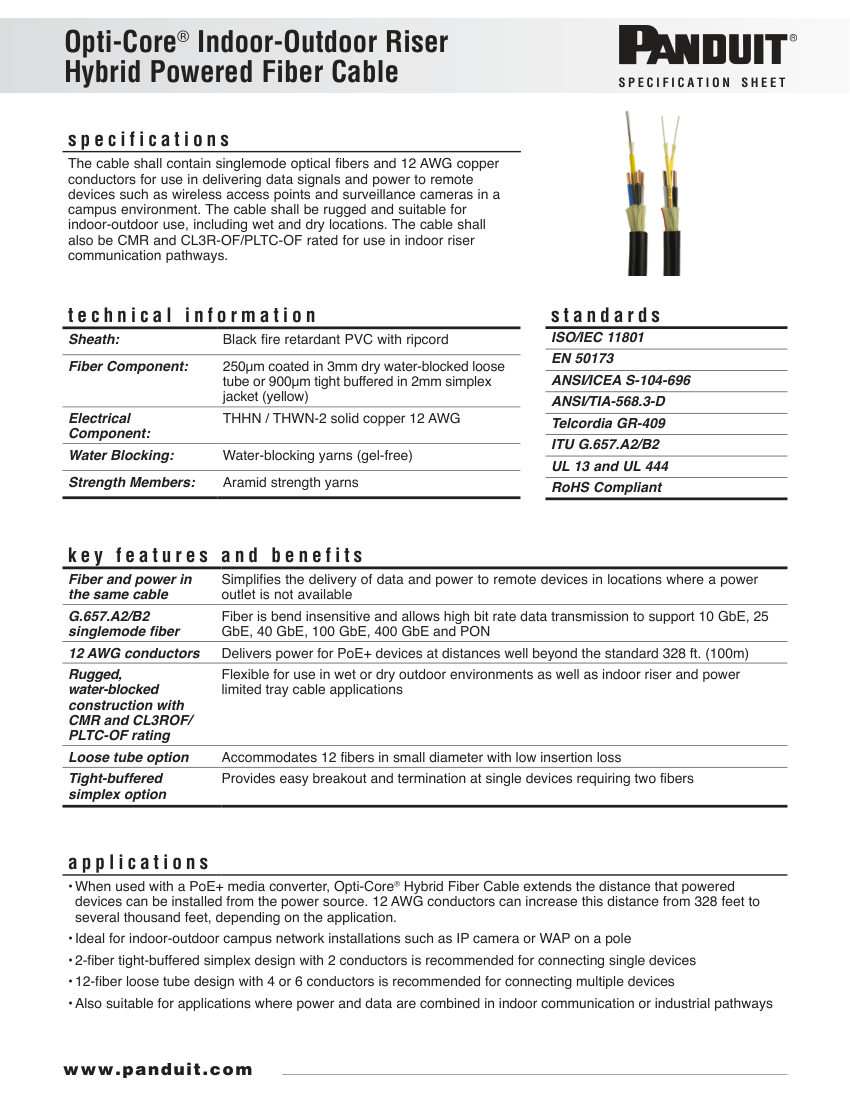

Panduit FSHRB12-04S12C cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
FSHRB12-04S12C
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFSHRB12-04S12C
DescriptionPanduit Hybrid Powered Fiber Cable (Opti-Core). Model FSHRB12-04S12C, FSHRB12-06S12C, FSHRB02-02S12A. Singlemode ITU G.657.A2/B2 fiber with 12 AWG copper conductors; Supports 10 GbE to 400 GbE and PON applications; Gel-free water-blocking yarns for rugged outdoor use; Max DC resistance 1.62 Ohm/kft at 20°C. material: Black fire retardant PVC, 12 AWG THHN/THWN-2 solid copper, Aramid strength yarns
MountingIndoor-outdoor riser, wet and dry locations
Dimensions0.34 in. to 0.53 in. diameter
ComplianceCMR, CL3R-OF/PLTC-OF, ISO/IEC 11801, EN 50173, ANSI/TIA-568.3-D, RoHS.

Also cataloged as: FSHRB12-06S12C, FSHRB02-02S12A
