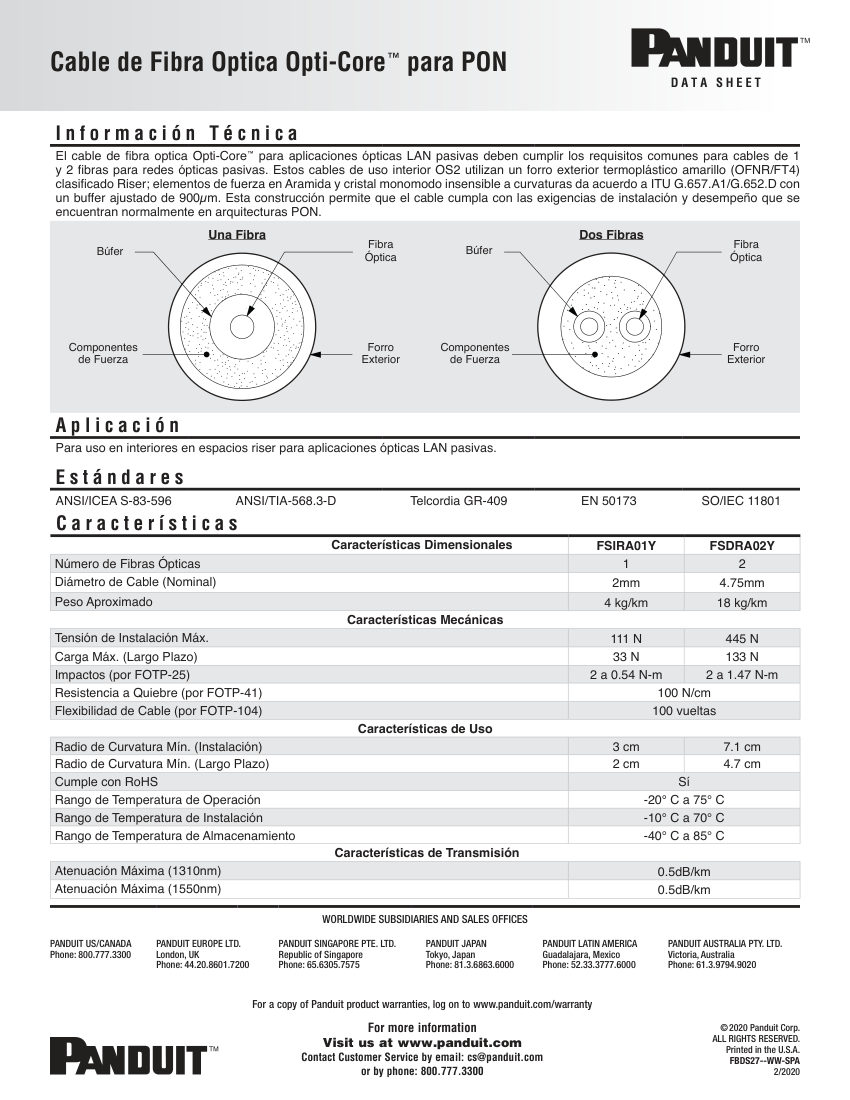

PanduitCable de Fibra Optica Opti-Core™ para PONFSIRA01Y

Name: Panduit Cable de Fibra Optica Opti-Core™ para PON (FSIRA01Y)
Brand: Panduit
SKU: FSIRA01Y

Panduit Indoor Riser Fiber Optic Cable (Optical Fiber Cable). Model FSIRA01Y, FSDRA02Y. OS2 Single-mode fiber (ITU G.657.A1/G.652.D)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	FSIRA01Y
Description	Panduit Indoor Riser Fiber Optic Cable (Optical Fiber Cable). Model FSIRA01Y, FSDRA02Y. OS2 Single-mode fiber (ITU G.657.A1/G.652.D)
Max Attenuation	0.5dB/km at 1310nm and 1550nm
Operating Temperature	-20°C to 75°C
Max Installation Tension	111 N (1-fiber), 445 N (2-fiber). material: Yellow thermoplastic jacket (OFNR/FT4), Aramid strength members, 900µm buffer
Finish	Yellow
Mounting	Indoor Riser
Dimensions	2mm (1-fiber), 4.75mm (2-fiber)
Compliance	ANSI/ICEA S-83-596, ANSI/TIA-568.3-D, Telcordia GR-409, EN 50173, SO/IEC 11801, RoHS.

Also cataloged as: FSDRA02Y
