DIV 27 · COMMUNICATIONSCOMMUNICATIONSCUT SHEET INDEXED

PanduitQuickNet 4 to 1 Conversion Harness Cable AssembliesFZ8RP8NUSQNM001

Panduit 4 to 1 Conversion Harness Cable Assembly (Fiber Optic Cabling). Model FZ8RP8NUSQNM001. Interconnects MPO modular transceivers with multiple LC ports

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFZ8RP8NUSQNM001.pdfData sheet

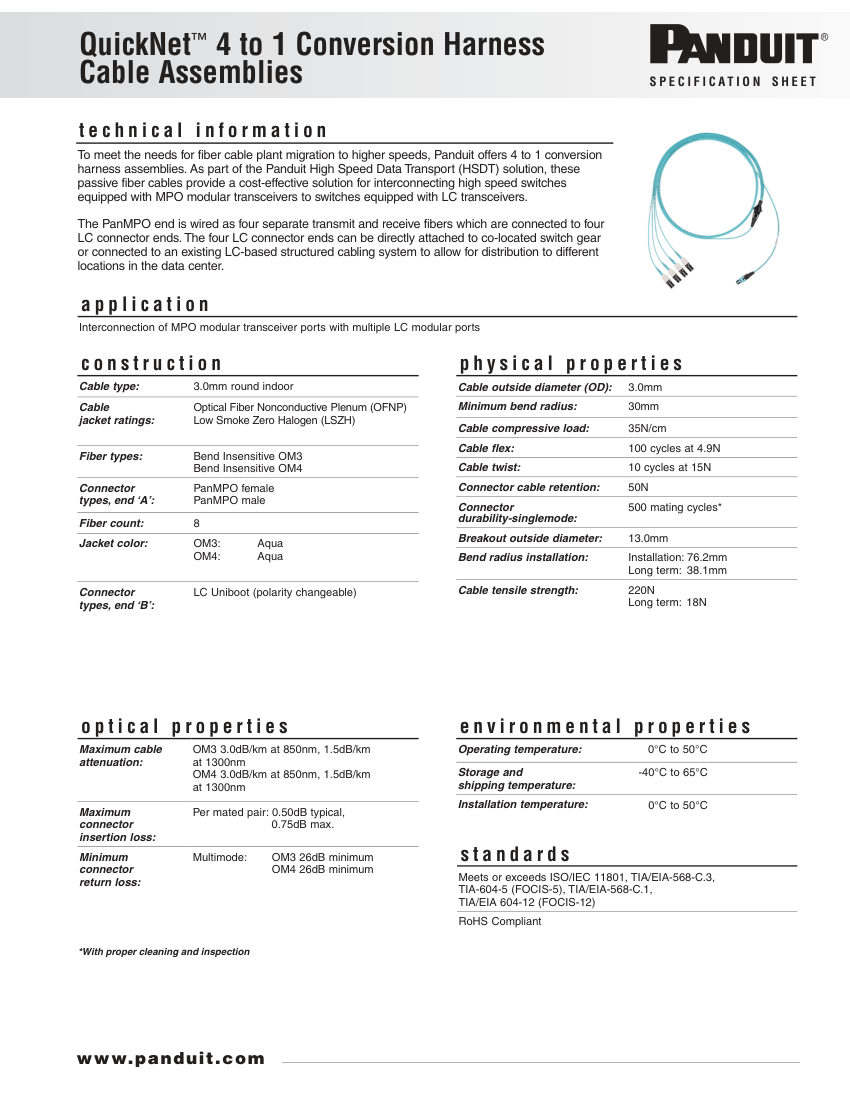

Panduit FZ8RP8NUSQNM001 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
FZ8RP8NUSQNM001
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFZ8RP8NUSQNM001
DescriptionPanduit 4 to 1 Conversion Harness Cable Assembly (Fiber Optic Cabling). Model FZ8RP8NUSQNM001. Interconnects MPO modular transceivers with multiple LC ports
Cable type3.0mm round indoor OFNP
Fiber typesBend Insensitive OM3 or OM4
Operating temperature0°C to 50°C. material: Bend Insensitive OM3/OM4 Fiber, LSZH Jacket
Connection size8-fiber
End connectionPanMPO (Male/Female) to LC Uniboot
Dimensions3.0mm OD, 13.0mm Breakout OD
ComplianceISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5, RoHS.
