DIV 27 · COMMUNICATIONSCOMMUNICATIONSCUT SHEET INDEXED

PanduitQuickNet™ PanMPO/MPO Ribbon Pigtail AssembliesFZTCN7NNNONM001

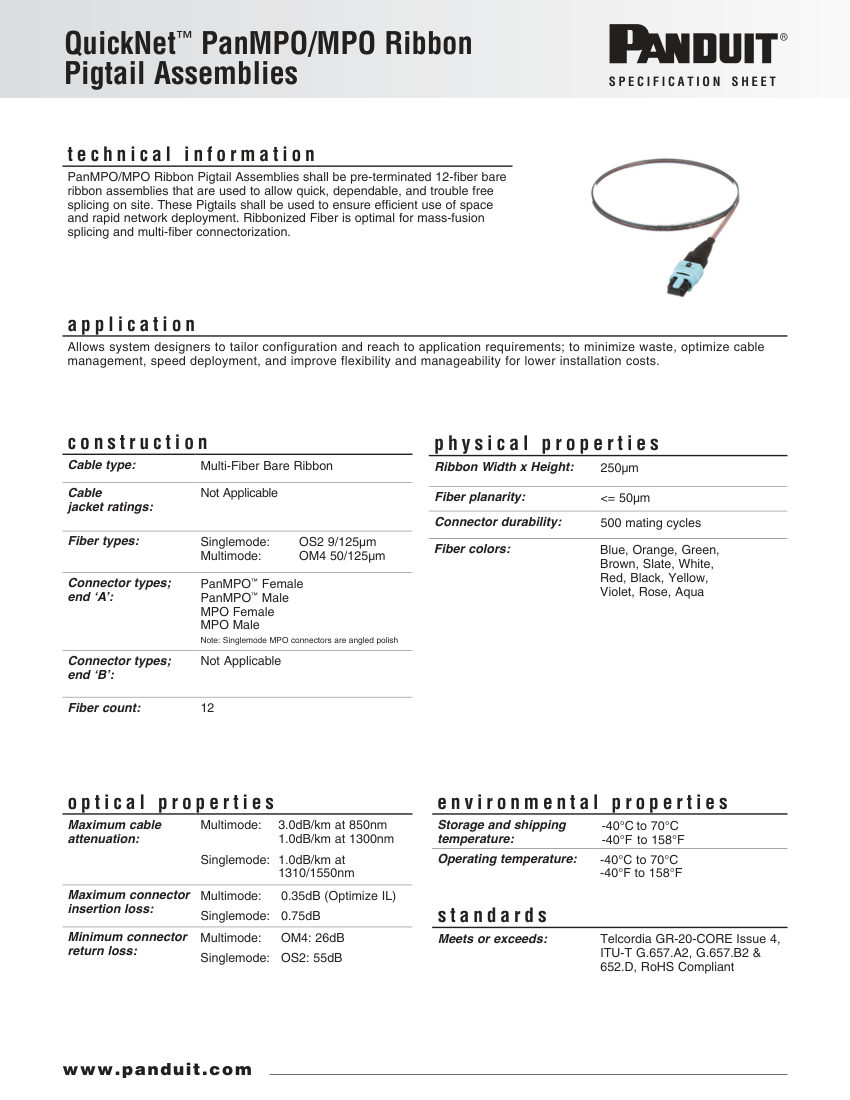

Name: Panduit QuickNet™ PanMPO/MPO Ribbon Pigtail Assemblies (FZTCN7NNNONM001)
Brand: Panduit
SKU: FZTCN7NNNONM001

Panduit Ribbon Pigtail Assembly (Fiber Optic Cabling). Model FZTCN7NNNONM001. 12-fiber bare ribbon assembly

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	FZTCN7NNNONM001
Description	Panduit Ribbon Pigtail Assembly (Fiber Optic Cabling). Model FZTCN7NNNONM001. 12-fiber bare ribbon assembly
Connector durability	500 mating cycles
Operating temperature	-40°C to 70°C; Max connector insertion loss: 0.35dB (Multimode), 0.75dB (Singlemode). material: OS2 9/125μm Singlemode, OM4 50/125μm Multimode
Connection size	12-fiber
End connection	PanMPO Female/Male, MPO Female/Male
Dimensions	250μm Ribbon Width x Height
Compliance	Telcordia GR-20-CORE Issue 4, ITU-T G.657.A2, G.657.B2, G.652.D, RoHS.
