PanduitQuickNet™ MPO Interconnect Round Cable AssembliesFZTRP5N5NANM001

Panduit MPO Interconnect Round Cable Assembly (Fiber Optic Cable). Model FZTRP5N5NANM001. 12-fiber pre-terminated assembly

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFZTRP5N5NANM001.pdfData sheet

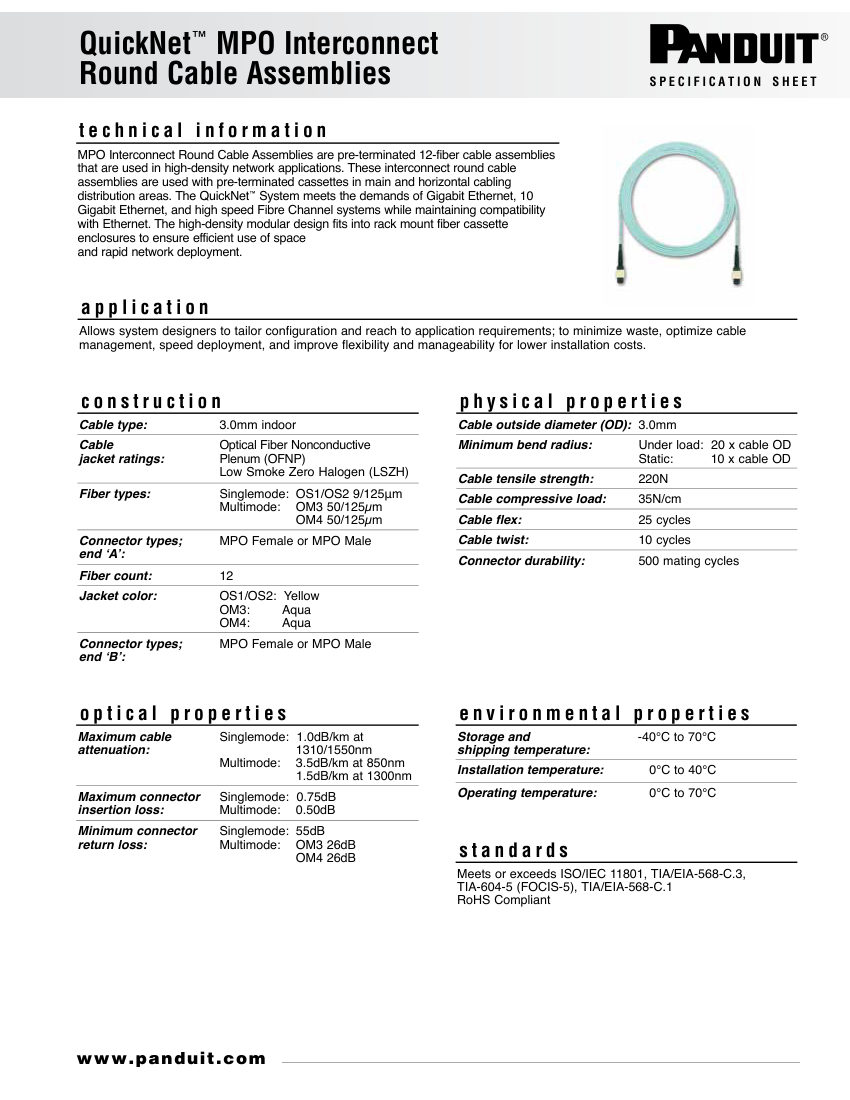

Panduit FZTRP5N5NANM001 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
FZTRP5N5NANM001
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFZTRP5N5NANM001
DescriptionPanduit MPO Interconnect Round Cable Assembly (Fiber Optic Cable). Model FZTRP5N5NANM001. 12-fiber pre-terminated assembly
Fiber typesOS1/OS2, OM3, OM4
Max insertion loss0.75dB (SM), 0.50dB (MM)
Operating temperature0°C to 70°C. material: Optical Fiber Nonconductive Plenum (OFNP) / LSZH
Connection sizeMPO Female or MPO Male
End connectionMPO Female or MPO Male
Dimensions3.0mm OD
ComplianceISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5, RoHS.
