DIV 27 · COMMUNICATIONSCOMMUNICATIONSCUT SHEET INDEXED

PanduitPanduit GMH12 Film LaminationGMH12

Panduit Film Lamination (Cable Management). Model GMH12. Service Temperature Range: -40F to 180F (-40C to 82C); Recommended for thermal transfer printing

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFGMH12.pdfData sheet

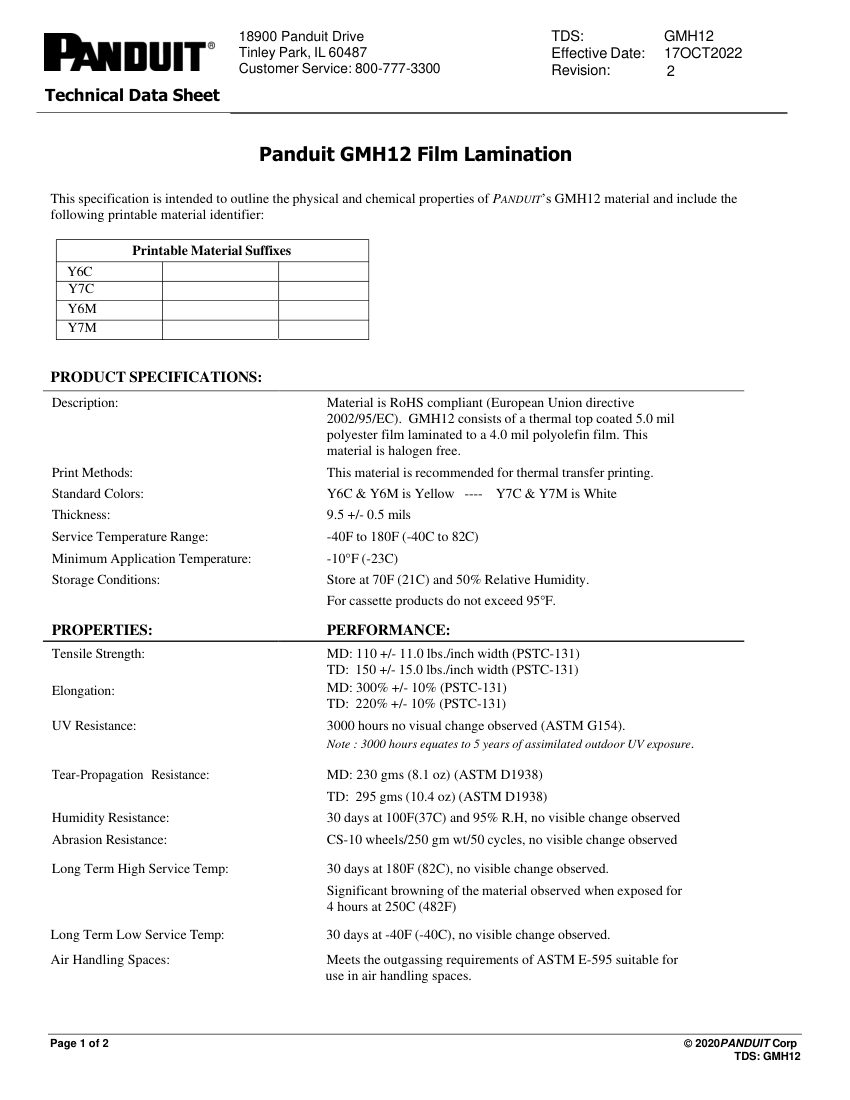

Panduit GMH12 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
GMH12
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberGMH12
DescriptionPanduit Film Lamination (Cable Management). Model GMH12. Service Temperature Range: -40F to 180F (-40C to 82C); Recommended for thermal transfer printing
UV Resistance3000 hours no visual change (ASTM G154)
Tensile Strength MD110 +/- 11.0 lbs./inch width. material: 5.0 mil thermal top coated polyester film laminated to 4.0 mil polyolefin film
FinishYellow (Y6C/Y6M) or White (Y7C/Y7M)
Dimensions9.5 +/- 0.5 mils thickness
ComplianceRoHS compliant, Halogen free, ASTM E-595.
