DIV 27 · COMMUNICATIONSCOMMUNICATIONSCUT SHEET INDEXED

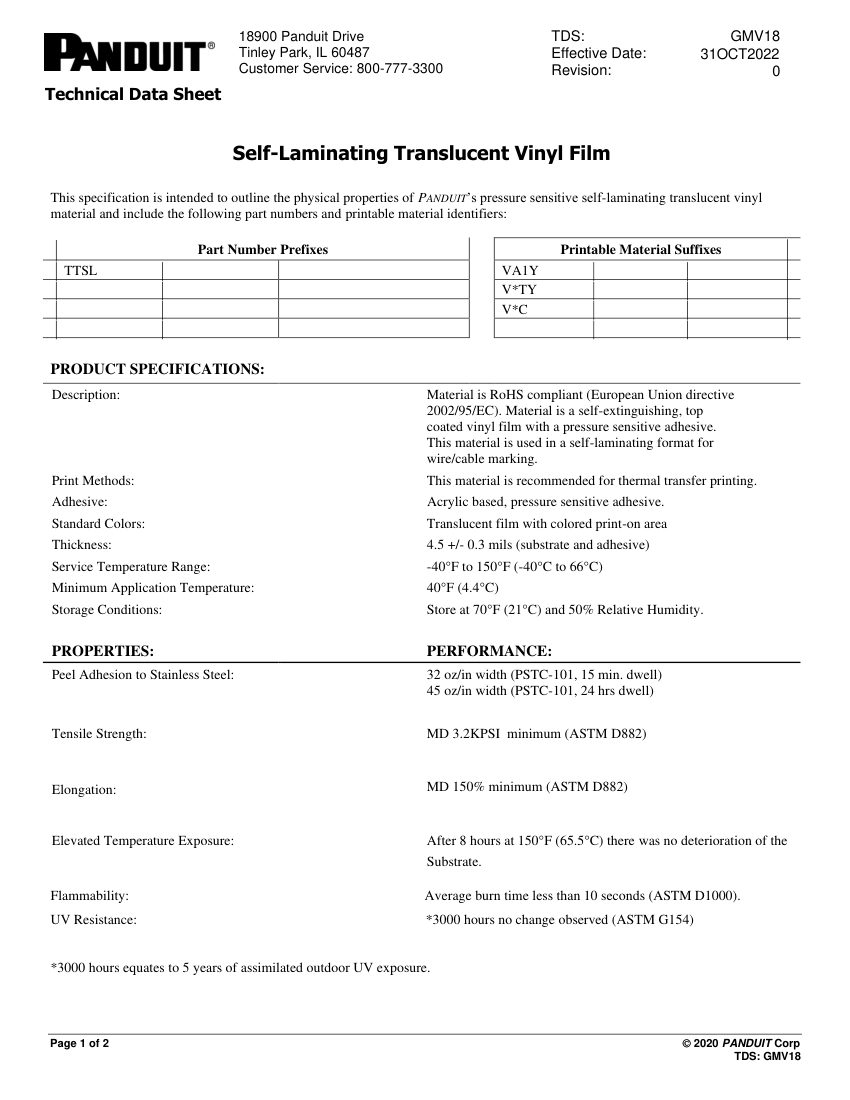

PanduitSelf-Laminating Translucent Vinyl Film TDS GMV18GMV18

Name: Panduit Self-Laminating Translucent Vinyl Film TDS GMV18
Brand: Panduit
SKU: GMV18

Panduit Self-Laminating Translucent Vinyl Film (Cable Management). Model GMV18. Service Temperature Range: -40°F to 150°F (-40°C to 66°C)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	GMV18
Description	Panduit Self-Laminating Translucent Vinyl Film (Cable Management). Model GMV18. Service Temperature Range: -40°F to 150°F (-40°C to 66°C)
Tensile Strength	MD 3.2KPSI minimum (ASTM D882)
Elongation	MD 150% minimum (ASTM D882); Peel Adhesion to Stainless Steel: 32 oz/in width (15 min dwell), 45 oz/in width (24 hrs dwell). material: Self-extinguishing, top coated vinyl film with acrylic based, pressure sensitive adhesive
Finish	Translucent
Mounting	Pressure sensitive adhesive
Dimensions	4.5 +/- 0.3 mils (substrate and adhesive)
Compliance	RoHS compliant (2002/95/EC), UL969, CUL C22.2
