DIV 27 · COMMUNICATIONSNETWORK INFRASTRUCTURECUT SHEET INDEXED

Panduithd flex mpo fiber optic cassettes fbsp249 ww enghd-flex-mpo-fiber-optic-cassettes-fbsp249-ww-eng

Panduit MPO-8/16 Fiber Optic Cassette (Fiber Optic Cassettes). Model FBS249. Fiber types: OM4, OM4+, OM5, OS2

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFhd-flex-mpo-fiber-optic-cassettes-fbsp249-ww-eng.pdfData sheet

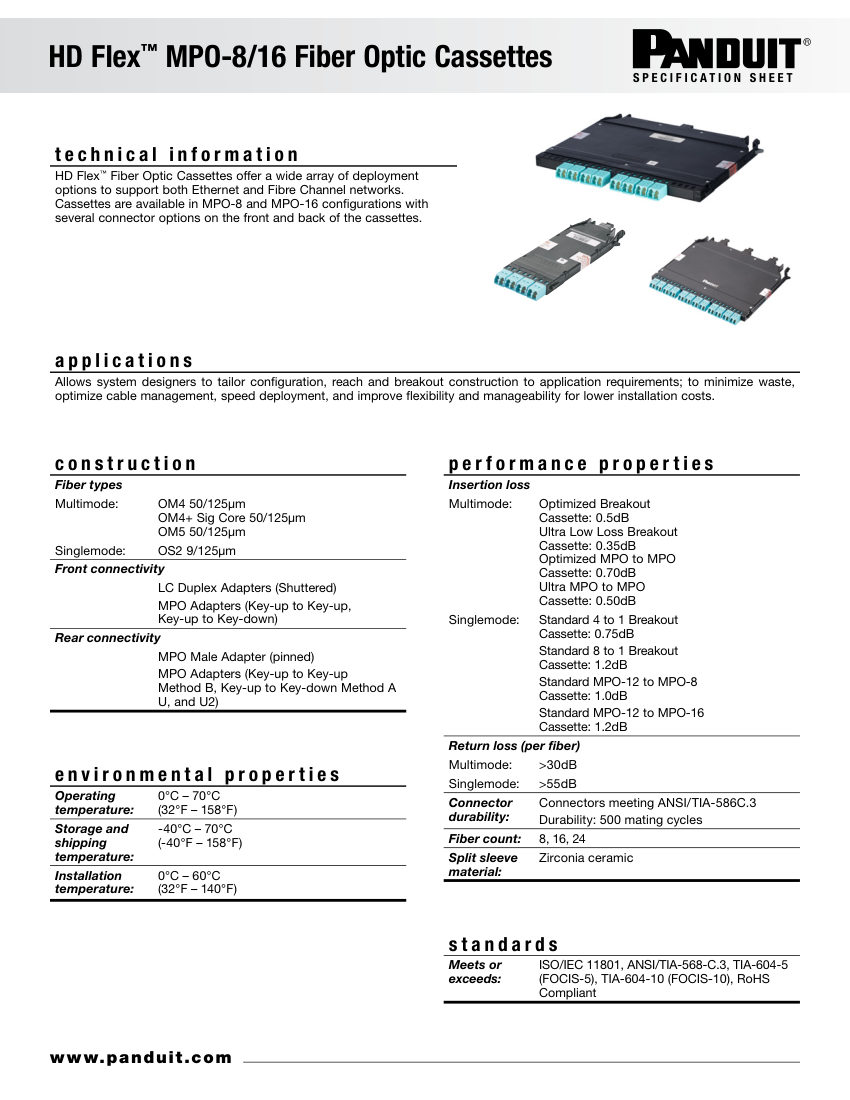

Panduit hd-flex-mpo-fiber-optic-cassettes-fbsp249-ww-eng cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
hd-flex-mpo-fiber-optic-cassettes-fbsp249-ww-eng
Product type
Network Infrastructure
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberhd-flex-mpo-fiber-optic-cassettes-fbsp249-ww-eng
DescriptionPanduit MPO-8/16 Fiber Optic Cassette (Fiber Optic Cassettes). Model FBS249. Fiber types: OM4, OM4+, OM5, OS2
Insertion loss0.35dB to 1.2dB depending on configuration
Return loss>30dB (Multimode), >55dB (Singlemode)
Operating temperature0°C – 70°C. material: Zirconia ceramic split sleeve
Connection sizeMPO-8, MPO-16
End connectionLC Duplex Adapters (Shuttered), MPO Adapters
ComplianceISO/IEC 11801, ANSI/TIA-568-C.3, TIA-604-5, TIA-604-10, RoHS.
