PanduitHDBaseT Extenders and HDMI Patch CordsHDMI1MBLA

Panduit HDBaseT Extender (HDBaseT Extenders and HDMI Patch Cords). Model CMHDBTBTX, CMHDBTWPTX, CMHDBTBRX, CMHDBTWRX. Extends HDMI, RS232, and power over 70m/230ft of Cat 6/6A cable; Video bandwidth of 297MHz (10.2Gbps); Supports up to 4K2K@30Hz resolution; Includes IR Emitter and 24V 1A DC Power Supply. material: Metal Enclosure

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFHDMI1MBLA.pdfData sheet

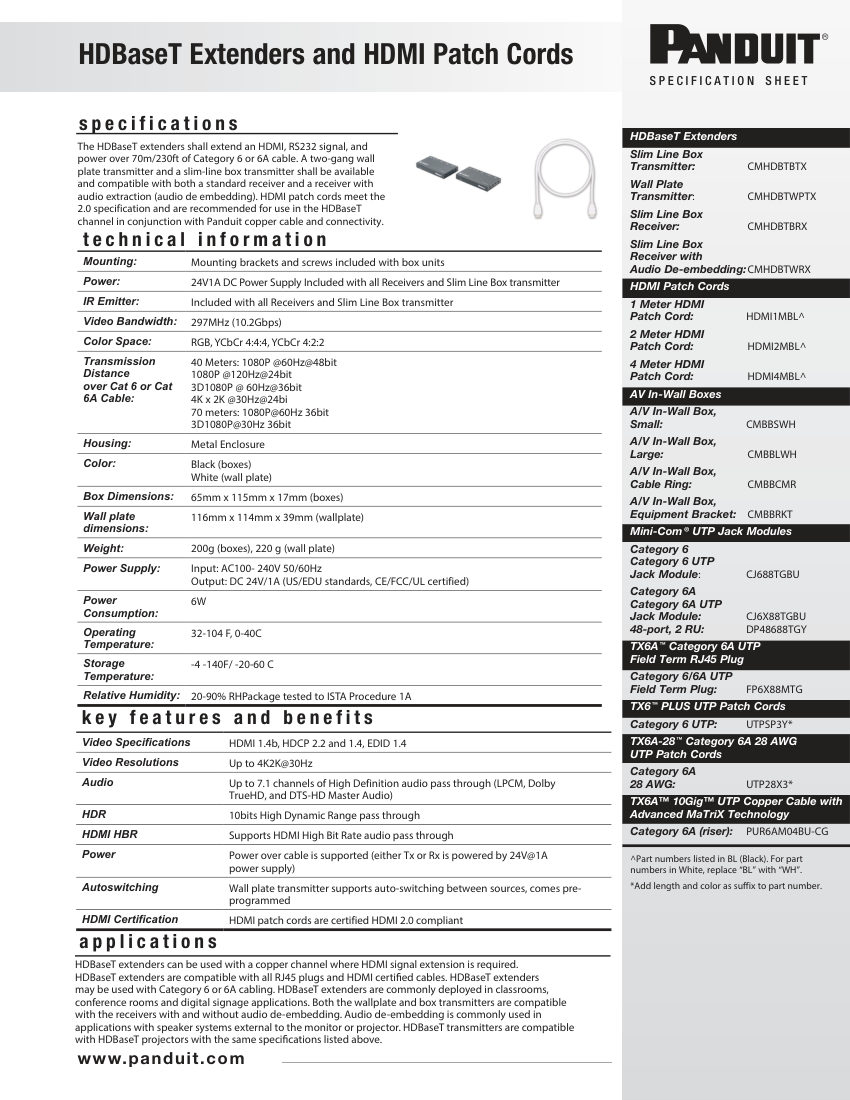

Panduit HDMI1MBLA cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
HDMI1MBLA
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberHDMI1MBLA
DescriptionPanduit HDBaseT Extender (HDBaseT Extenders and HDMI Patch Cords). Model CMHDBTBTX, CMHDBTWPTX, CMHDBTBRX, CMHDBTWRX. Extends HDMI, RS232, and power over 70m/230ft of Cat 6/6A cable; Video bandwidth of 297MHz (10.2Gbps); Supports up to 4K2K@30Hz resolution; Includes IR Emitter and 24V 1A DC Power Supply. material: Metal Enclosure
Connection sizeCategory 6 or 6A
End connectionHDMI, RS232
FinishBlack (boxes), White (wall plate)
MountingMounting brackets and screws included with box units
Dimensions65mm x 115mm x 17mm (boxes), 116mm x 114mm x 39mm (wallplate).

Also cataloged as: HDMI2MBLA, HDMI4MBLA, HDMI-1M, HDMI-2M, HDMI-4M
