PanduitHFT-2

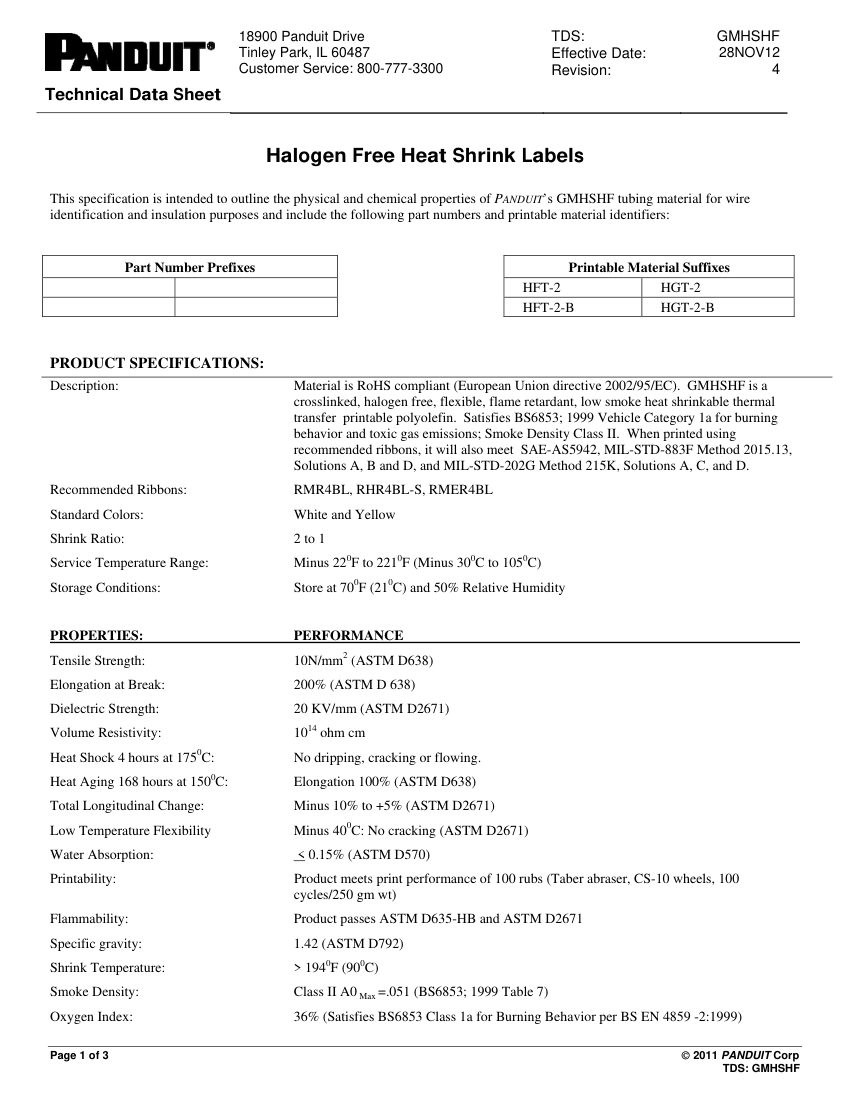

Name: Panduit HFT-2
Brand: Panduit
SKU: HFT-2

Panduit Heat Shrink Label Tubing (Cable Management). Model GMHSHF. Service Temperature Range: -30°C to 105°C

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	HFT-2
Description	Panduit Heat Shrink Label Tubing (Cable Management). Model GMHSHF. Service Temperature Range: -30°C to 105°C
Shrink Temperature	> 90°C
Tensile Strength	10 N/mm²
Dielectric Strength	20 KV/mm. material: Crosslinked, halogen free, flexible, flame retardant, low smoke heat shrinkable thermal transfer printable polyolefin
Finish	White and Yellow
Dimensions	Shrink Ratio: 2 to 1
Compliance	RoHS, BS6853:1999, SAE-AS5942, MIL-STD-883F, MIL-STD-202G, IEC 60754-2.

Also cataloged as: HFT-2-B
