PanduitIndustrialNet™ Category 5e Solid Conductor F/UTP Copper CableISTPHCH1MTL

Panduit Category 5e F/UTP Copper Cable (Industrial Ethernet Cable). Model IFRH5C02BL-UG / IFRH5C02RD-UG. 24 AWG solid copper conductors; Flame rating CMX Outdoor/CMR; Oil and sunlight resistant PVC jacket; Operating temperature -40°C to 75°C. material: Solid Copper, HDPE Insulation, PVC Jacket

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFISTPHCH1MTL.pdfData sheet

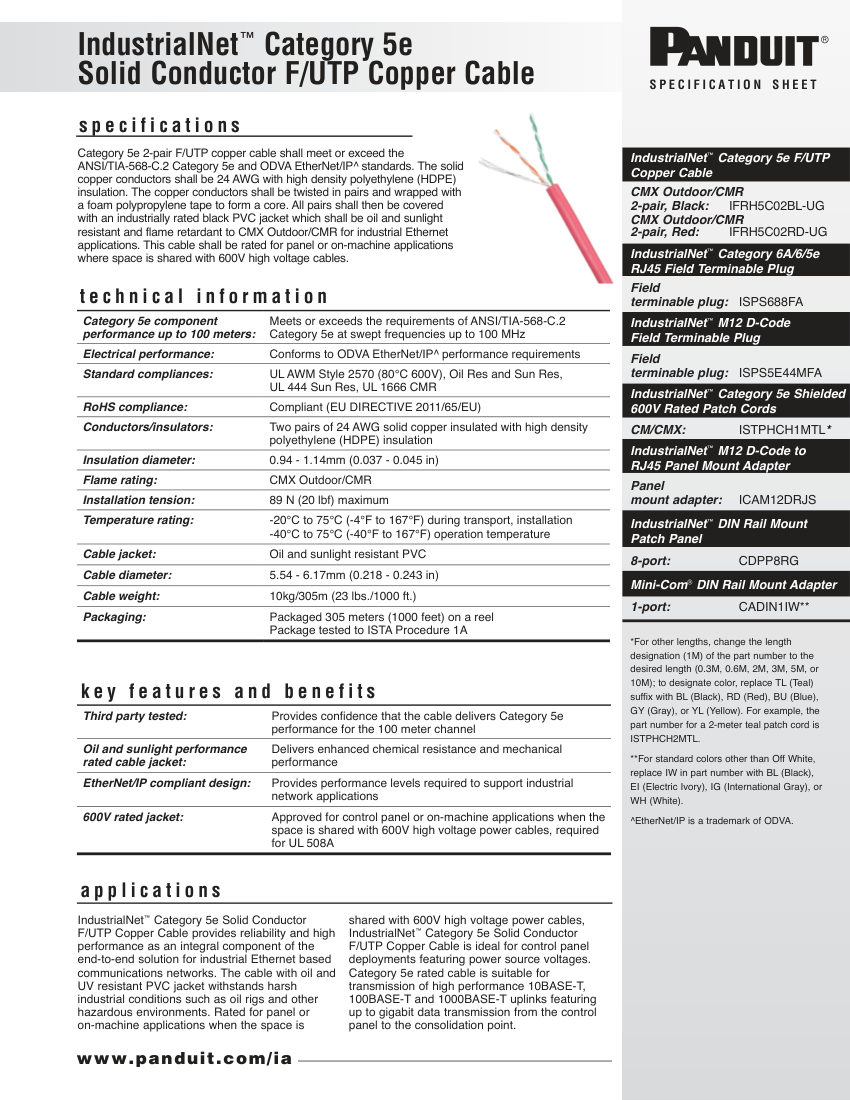

Panduit ISTPHCH1MTL cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
ISTPHCH1MTL
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberISTPHCH1MTL
DescriptionPanduit Category 5e F/UTP Copper Cable (Industrial Ethernet Cable). Model IFRH5C02BL-UG / IFRH5C02RD-UG. 24 AWG solid copper conductors; Flame rating CMX Outdoor/CMR; Oil and sunlight resistant PVC jacket; Operating temperature -40°C to 75°C. material: Solid Copper, HDPE Insulation, PVC Jacket
Connection size2-pair
FinishBlack or Red
Dimensions5.54 - 6.17mm diameter
ComplianceANSI/TIA-568-C.2, ODVA EtherNet/IP, UL AWM Style 2570, CMX Outdoor/CMR, RoHS
Voltage600V.

Also cataloged as: ISTPHCH2MTL, ISTPHCH-0.3M, ISTPHCH-0.6M, ISTPHCH-1M, ISTPHCH-2M, ISTPHCH-3M, ISTPHCH-5M, ISTPHCH-10M
