PanduitNetKey® NK6™ Category 6 U/UTP Copper CableNK6

Panduit Category 6 U/UTP Copper Cable (Structured Cabling). Model NUC6C04. Certified performance up to 100 meters in 4-connector configuration; Supports PoE applications (IEEE 802.3af, at, bt); Nominal Velocity of Propagation (NVP) 65%; Minimum bend radius 4 x cable diameter. material: 24 AWG solid copper, HDPE polymer insulation, flame retardant PVC jacket

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFNK6.pdfData sheet

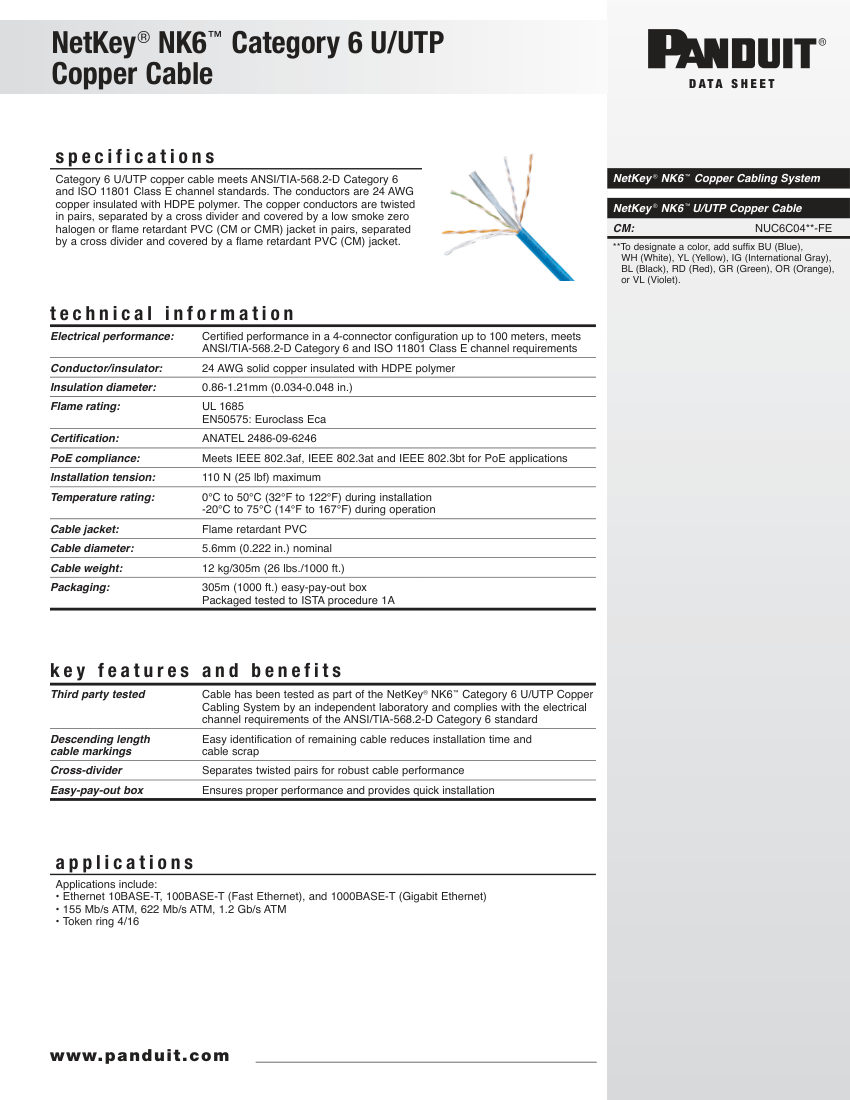

Panduit NK6 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
NK6
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberNK6
DescriptionPanduit Category 6 U/UTP Copper Cable (Structured Cabling). Model NUC6C04. Certified performance up to 100 meters in 4-connector configuration; Supports PoE applications (IEEE 802.3af, at, bt); Nominal Velocity of Propagation (NVP) 65%; Minimum bend radius 4 x cable diameter. material: 24 AWG solid copper, HDPE polymer insulation, flame retardant PVC jacket
Dimensions5.6mm (0.222 in.) nominal diameter
ComplianceANSI/TIA-568.2-D Category 6, ISO 11801 Class E, UL 1685, EN50575 Euroclass Eca, ANATEL 2486-09-6246
Voltage80 V maximum.
