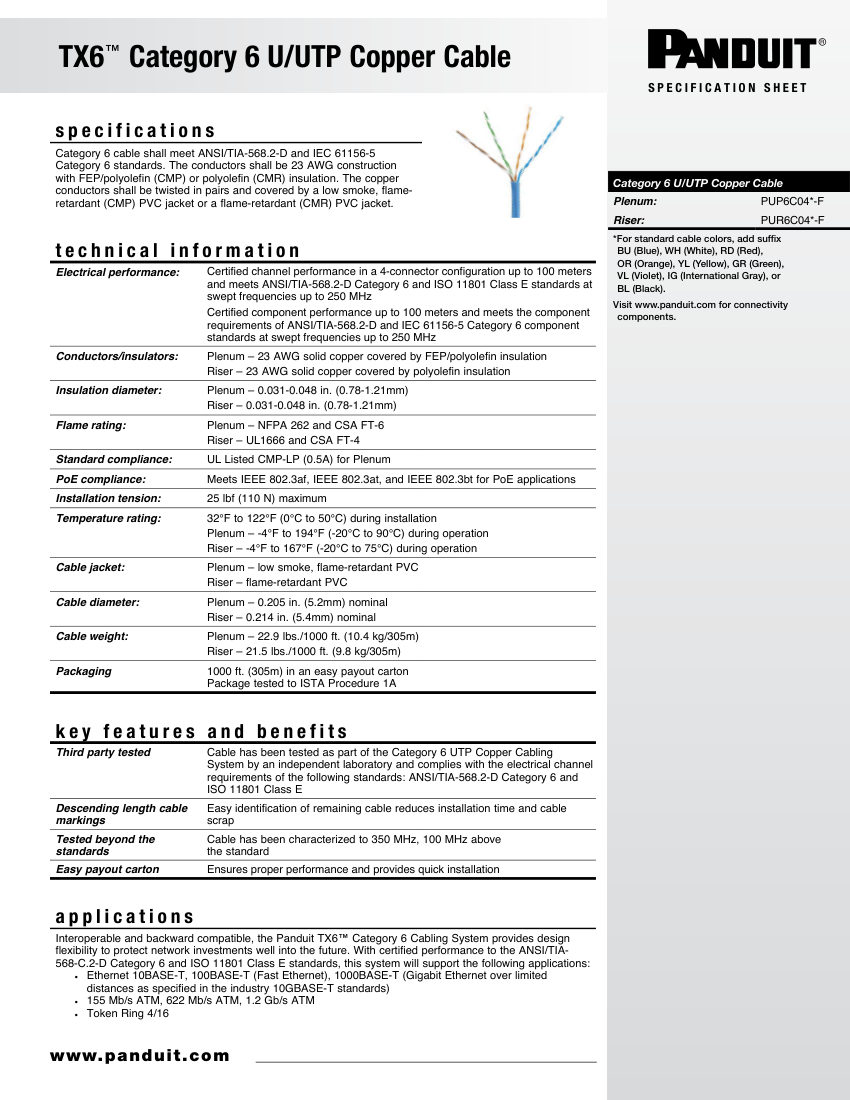

PanduitNK6000

Name: Panduit NK6000
Brand: Panduit
SKU: NK6000

Panduit Category 6 U/UTP Copper Cable (Copper Cabling). Model NK6000. Certified channel performance up to 100 meters at 250 MHz

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	NK6000
Description	Panduit Category 6 U/UTP Copper Cable (Copper Cabling). Model NK6000. Certified channel performance up to 100 meters at 250 MHz
Flame ratings	Plenum (CMP) and Riser (CMR); Supports PoE standards IEEE 802.3af, at, and bt
Operating temperature	-20°C to 90°C (Plenum), -20°C to 75°C (Riser). material: 23 AWG solid copper conductors, FEP/polyolefin or polyolefin insulation, PVC jacket
Dimensions	Plenum: 0.205 in. (5.2mm) nominal
Riser	0.214 in. (5.4mm) nominal
Compliance	ANSI/TIA-568.2-D, IEC 61156-5, ISO 11801 Class E, NFPA 262, CSA FT-6, UL1666, CSA FT-4
Voltage	80 V maximum.
