PanduitNetKey® Category 6 UTP Jack ModulesNK6TMIW

Panduit Category 6 UTP Jack Module (Structured Cabling). Model NK6TMIW. Exceeds Category 6/Class E channel and component requirements at 1-250 MHz; Terminates without punchdown tool using optional termination tool; Universal label color-coded to T568A and T568B wiring schemes; Contacts plated with 50 microinches of gold. connectionSize: 8-position keystone

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFNK6TMIW.pdfData sheet

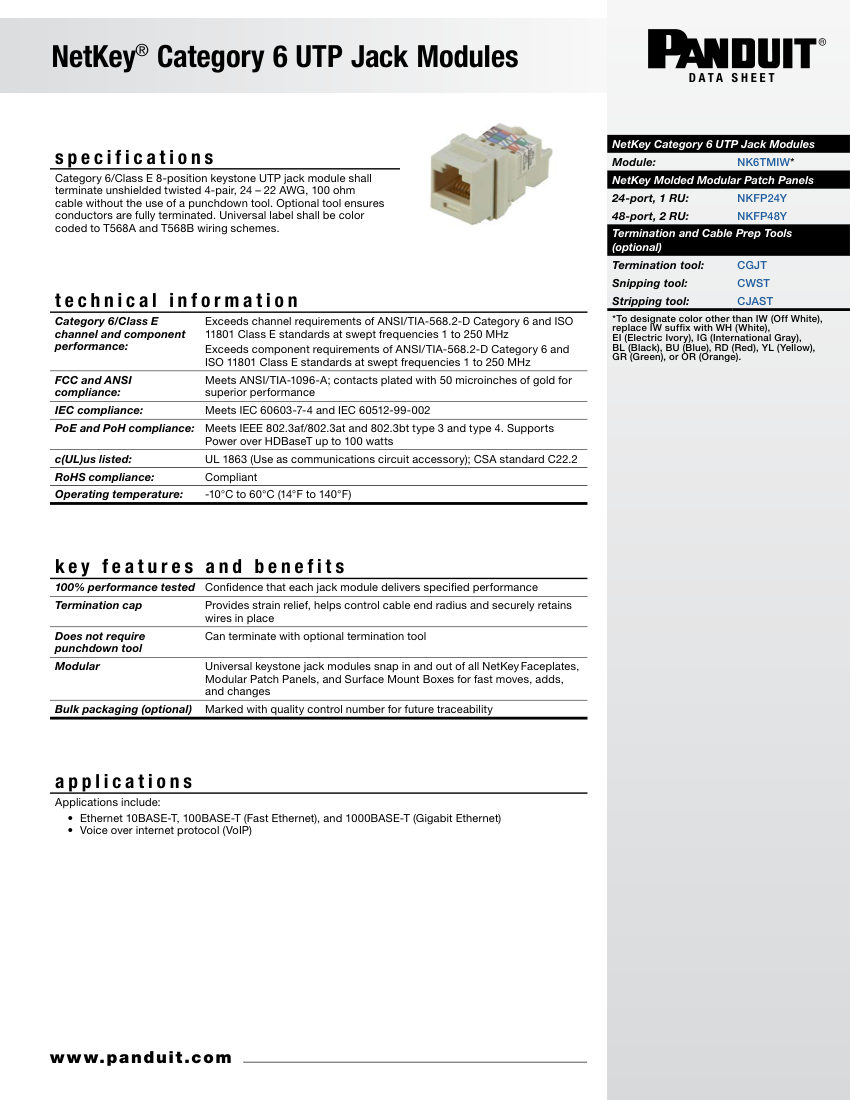

Panduit NK6TMIW cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
NK6TMIW
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberNK6TMIW
DescriptionPanduit Category 6 UTP Jack Module (Structured Cabling). Model NK6TMIW. Exceeds Category 6/Class E channel and component requirements at 1-250 MHz; Terminates without punchdown tool using optional termination tool; Universal label color-coded to T568A and T568B wiring schemes; Contacts plated with 50 microinches of gold. connectionSize: 8-position keystone
End connectionUTP 4-pair, 24-22 AWG
FinishIW (Off White), WH, EI, IG, BL, BU, RD, YL, GR, OR
MountingModular keystone
Dimensions0.76 x 0.58 x 1.43 in (19.4 x 14.6 x 36.4 mm)
ComplianceANSI/TIA-568.2-D, ISO 11801 Class E, IEC 60

Also cataloged as: NK6TMWH, NK6TMIW-IW, NK6TMIW-WH, NK6TMIW-EI, NK6TMIW-IG, NK6TMIW-BL, NK6TMIW-BU, NK6TMIW-RD, NK6TMIW-YL, NK6TMIW-GR, NK6TMIW-OR
