PanduitNetKey® Pre-Loaded Fiber DrawersNKDS19--WW-ENG

Panduit Pre-Loaded Fiber Drawer (NetKey). Model NKDS19--WW-ENG. Two-piece design with slide-out drawer for full access; Pre-loaded with duplex SC or LC adapters; Supports OM1, OM3/OM4 multimode and OS1/OS2 singlemode fiber; Includes mounting hardware and fiber routing accessory kit. material: All metal

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFNKDS19--WW-ENG.pdfData sheet

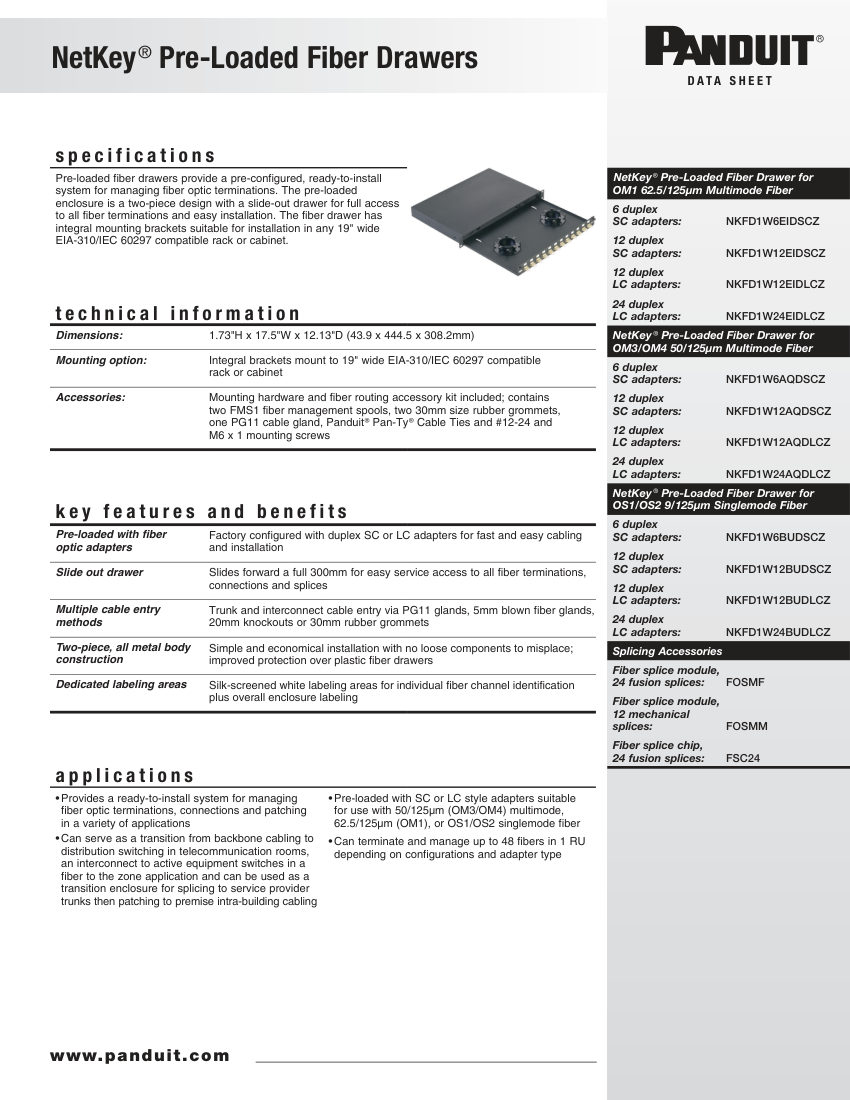

Panduit NKDS19--WW-ENG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
NKDS19--WW-ENG
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberNKDS19--WW-ENG
DescriptionPanduit Pre-Loaded Fiber Drawer (NetKey). Model NKDS19--WW-ENG. Two-piece design with slide-out drawer for full access; Pre-loaded with duplex SC or LC adapters; Supports OM1, OM3/OM4 multimode and OS1/OS2 singlemode fiber; Includes mounting hardware and fiber routing accessory kit. material: All metal
Connection size19" wide EIA-310/IEC 60297
End connectionSC or LC duplex adapters
MountingIntegral brackets for 19" rack or cabinet
Dimensions1.73"H x 17.5"W x 12.13"D (43.9 x 444.5 x 308.2mm)
ComplianceEIA-310/IEC 60297.
