PanduitNetKey® Category 6 U/UTP Copper CableNKDS66--WW-ENG

Panduit Category 6 U/UTP Copper Cable (NetKey Copper Cabling System). Model NUZ6C04**-KE. Certified performance up to 100 meters in 4-connector configuration

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFNKDS66--WW-ENG.pdfData sheet

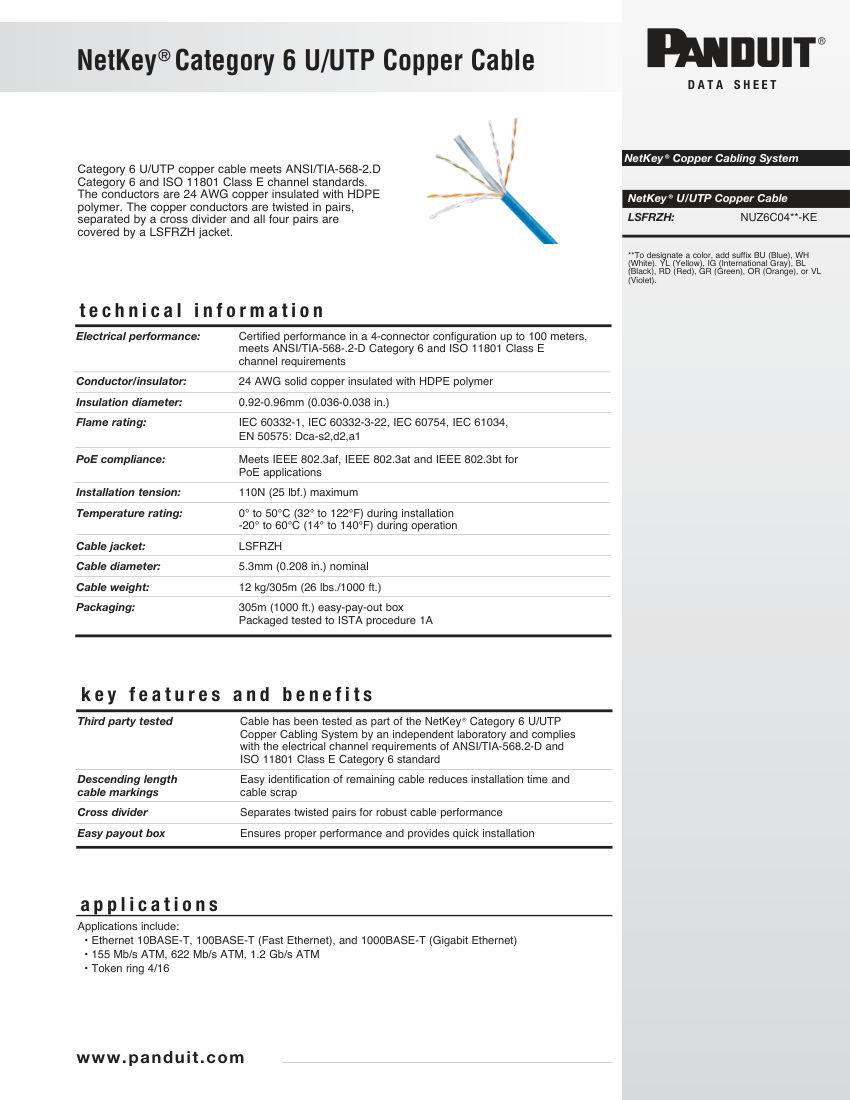

Panduit NKDS66--WW-ENG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
NKDS66--WW-ENG
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberNKDS66--WW-ENG
DescriptionPanduit Category 6 U/UTP Copper Cable (NetKey Copper Cabling System). Model NUZ6C04**-KE. Certified performance up to 100 meters in 4-connector configuration
Flame ratingIEC 60332-1, IEC 60332-3-22, IEC 60754, IEC 61034, EN 50575; Nominal Velocity of Propagation (NVP): 66%
Minimum bend radius4 x cable diameter. material: 24 AWG solid copper, HDPE insulation, LSFRZH jacket
Dimensions5.3mm (0.208 in.) nominal diameter
ComplianceANSI/TIA-568-2.D, ISO 11801 Class E, IEEE 802.3af/at/bt.
