PanduitNetKey® Flush Mount Modular Patch PanelsNKDS69--WW-ENG

Panduit Flush Mount Modular Patch Panel (NetKey). Model NKDS69--WW-ENG. Accepts all NetKey Modules for UTP, fiber, or A/V applications; Available in Flat and Angled styles; Pre-numbered ports with write-on areas; Mounts to standard 19" racks or 23" racks with extender brackets. material: CRS stamping, ABS faceplate

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFNKDS69--WW-ENG.pdfData sheet

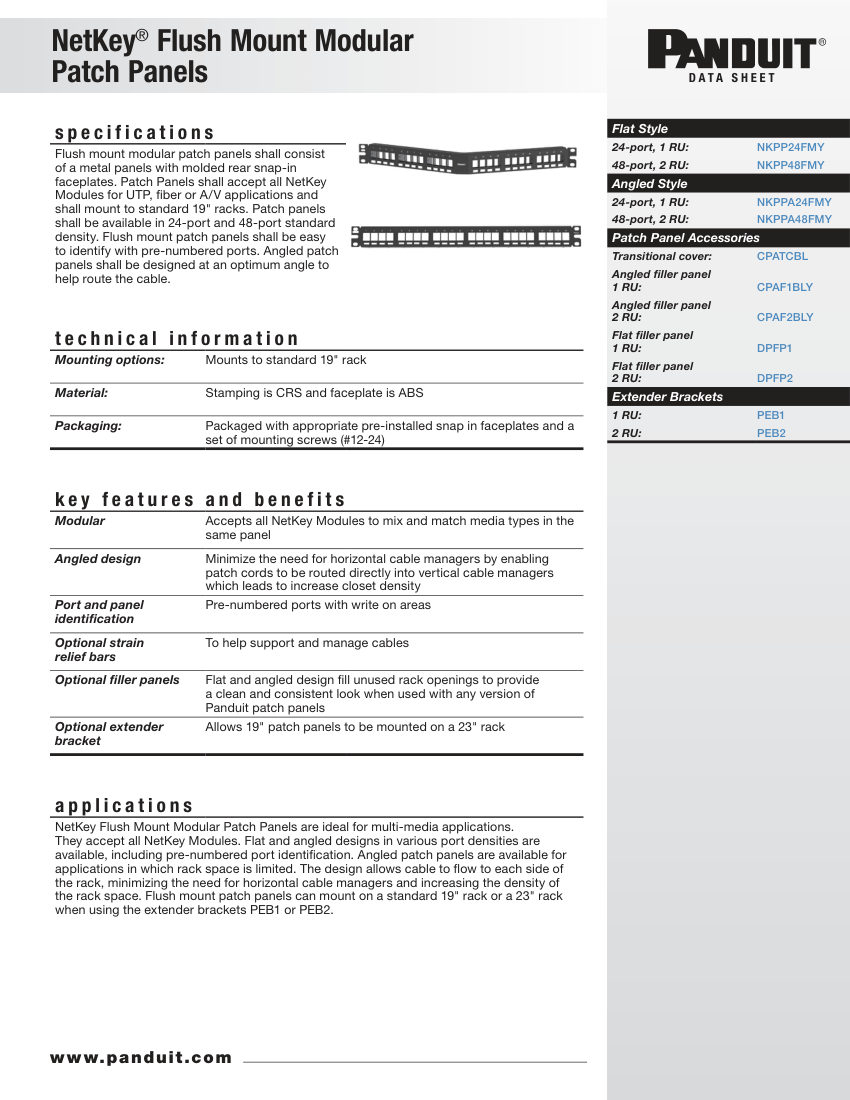

Panduit NKDS69--WW-ENG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
NKDS69--WW-ENG
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberNKDS69--WW-ENG
DescriptionPanduit Flush Mount Modular Patch Panel (NetKey). Model NKDS69--WW-ENG. Accepts all NetKey Modules for UTP, fiber, or A/V applications; Available in Flat and Angled styles; Pre-numbered ports with write-on areas; Mounts to standard 19" racks or 23" racks with extender brackets. material: CRS stamping, ABS faceplate
Connection size24-port, 48-port
End connectionNetKey Modules (UTP, fiber, A/V)
MountingStandard 19" rack
Dimensions1 RU (24-port), 2 RU (48-port).
