DIV 27 · COMMUNICATIONSCOMMUNICATIONSCUT SHEET INDEXED

PanduitNetKey® Category 6A U/UTP Copper Cable- EuropeNKSP62--WW-ENG

Panduit Category 6A U/UTP Copper Cable (NetKey® Category 6A U/UTP Copper Cabling System). Model NKSP62--WW-ENG. Supports 10GBASE-T transmission up to 100 meters; Flame rating EN 50575 EuroClass Cca-s1a,d0,a1; Cable weight 16 kg/305m (36 lbs./1000 ft.); Operating temperature -20°C to 75°C. material: 23 AWG solid copper conductors, SFS-PO insulation, LSFRZH jacket

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFNKSP62--WW-ENG.pdfData sheet

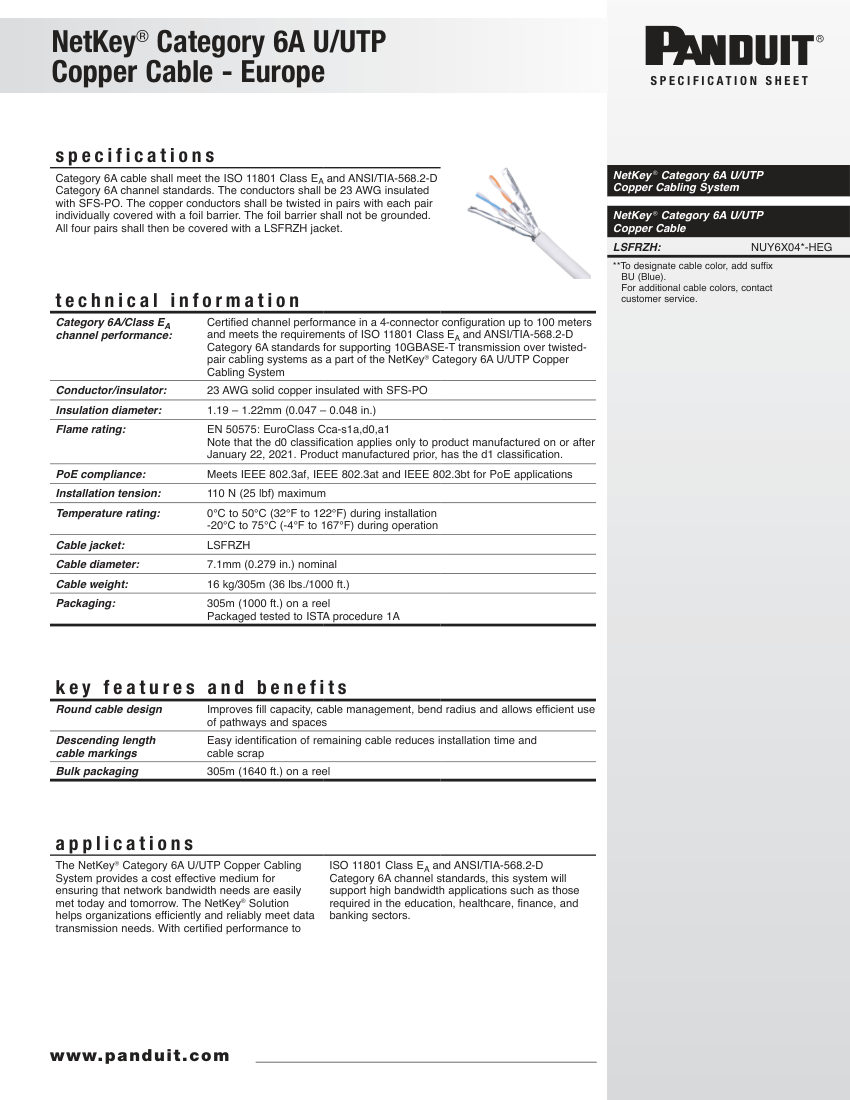

Panduit NKSP62--WW-ENG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
NKSP62--WW-ENG
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberNKSP62--WW-ENG
DescriptionPanduit Category 6A U/UTP Copper Cable (NetKey® Category 6A U/UTP Copper Cabling System). Model NKSP62--WW-ENG. Supports 10GBASE-T transmission up to 100 meters; Flame rating EN 50575 EuroClass Cca-s1a,d0,a1; Cable weight 16 kg/305m (36 lbs./1000 ft.); Operating temperature -20°C to 75°C. material: 23 AWG solid copper conductors, SFS-PO insulation, LSFRZH jacket
Dimensions7.1mm (0.279 in.) nominal diameter
ComplianceISO 11801 Class EA, ANSI/TIA-568.2-D Category 6A, EN 50575 EuroClass Cca-s1a,d0,a1, IEEE 802.3af/at/bt
Voltage80 V maximum.
