PanduitNetKey® Unshielded Category 6A Copper CableNKSP68--WW-ENG

Panduit Unshielded Category 6A Copper Cable (NetKey). Model NKSP68--WW-ENG. Category 6A/Class EA certified up to 500 MHz; Supports 10GBASE-T transmission; LSZH flame rating (Cca-s1a,d1,a1); Maximum installation tension 110N (25 lbf). material: 23 AWG solid copper conductors, HDPE LSZH insulation and jacket

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFNKSP68--WW-ENG.pdfData sheet

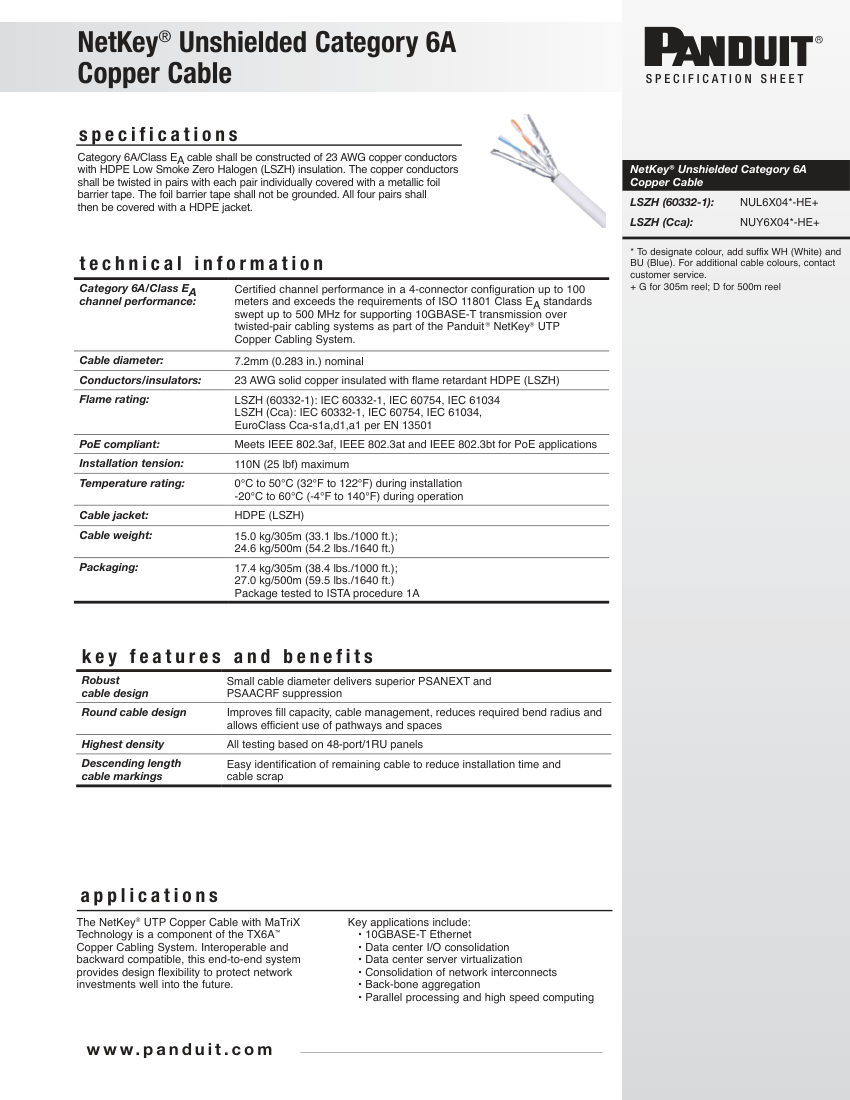

Panduit NKSP68--WW-ENG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
NKSP68--WW-ENG
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberNKSP68--WW-ENG
DescriptionPanduit Unshielded Category 6A Copper Cable (NetKey). Model NKSP68--WW-ENG. Category 6A/Class EA certified up to 500 MHz; Supports 10GBASE-T transmission; LSZH flame rating (Cca-s1a,d1,a1); Maximum installation tension 110N (25 lbf). material: 23 AWG solid copper conductors, HDPE LSZH insulation and jacket
Dimensions7.2mm (0.283 in.) nominal diameter
ComplianceISO 11801 Class EA, IEC 60332-1, IEC 60754, IEC 61034, EN 13501, IEEE 802.3af/at/bt
Voltage80V maximum.
