PanduitNetKey™ Category 5e UTP Patch Cords - APACNKU5EPC

Panduit Category 5e UTP Patch Cord (NetKey). Model NKU5EPC. Exceeds ANSI/TIA-568.2-D Category 5e channel requirements up to 100 MHz; Compatible with T568A and T568B wiring schemes; Supports IEEE 802.3af/802.3at and proposed 802.3bt PoE applications; CM rated flammability. material: 24 AWG stranded copper

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFNKU5EPC.pdfData sheet

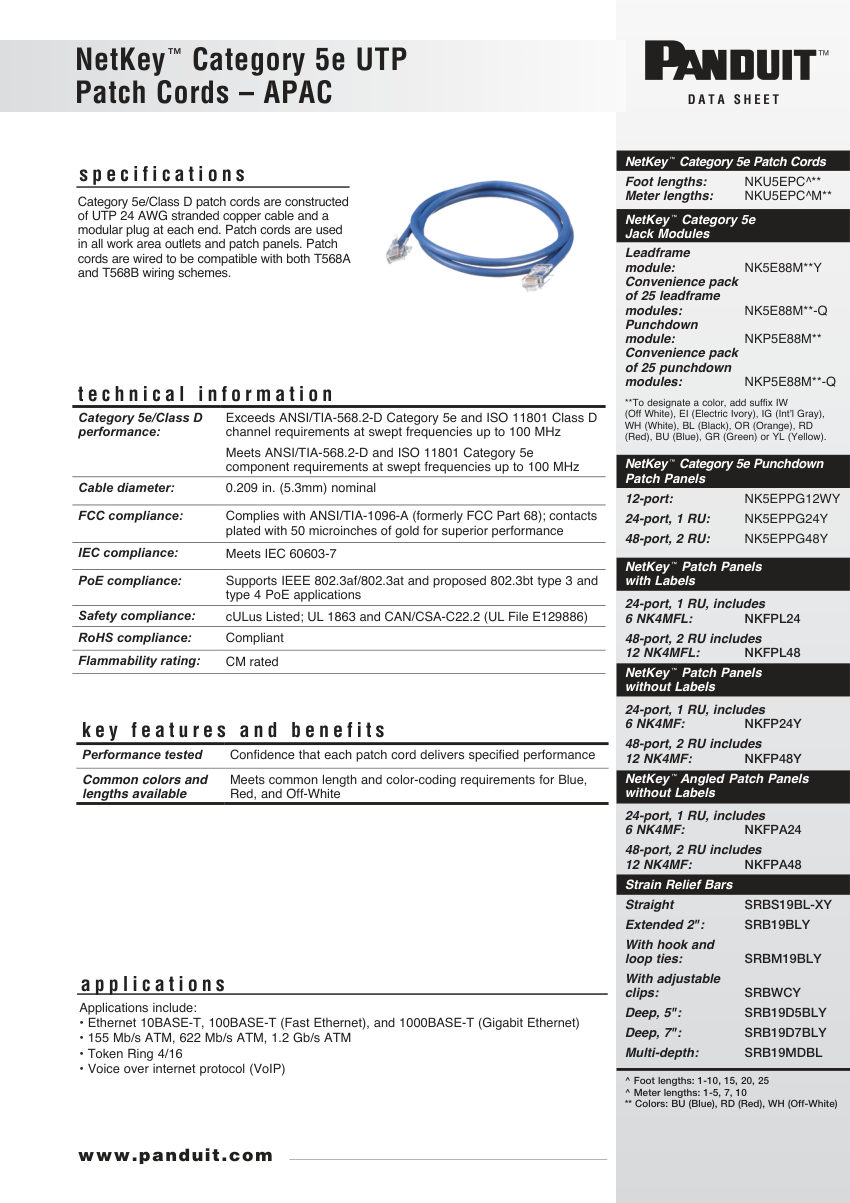

Panduit NKU5EPC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
NKU5EPC
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberNKU5EPC
DescriptionPanduit Category 5e UTP Patch Cord (NetKey). Model NKU5EPC. Exceeds ANSI/TIA-568.2-D Category 5e channel requirements up to 100 MHz; Compatible with T568A and T568B wiring schemes; Supports IEEE 802.3af/802.3at and proposed 802.3bt PoE applications; CM rated flammability. material: 24 AWG stranded copper
End connectionModular plug
Dimensions0.209 in. (5.3mm) nominal cable diameter
ComplianceANSI/TIA-568.2-D, ISO 11801 Class D, IEC 60603-7, cULus Listed, RoHS.

Also cataloged as: NKU5EPC-A1, NKU5EPC-A2, NKU5EPC-A3, NKU5EPC-A4, NKU5EPC-A5, NKU5EPC-A6, NKU5EPC-A7, NKU5EPC-A8, NKU5EPC-A9, NKU5EPC-A10, NKU5EPC-A15
