DIV 27 · COMMUNICATIONSCOMMUNICATIONSCUT SHEET INDEXED

PanduitNetKey® Category 5e U/UTP Copper CableNUL5C04BU-CE

Panduit Category 5e U/UTP Copper Cable (Structured Cabling). Model NUL5C04BU-CE, NUC5C04BU-CE, NUR5C04BU-C. Category 5e performance up to 100 MHz; Supports Gigabit Ethernet (1000BASE-T)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFNUL5C04BU-CE.pdfData sheet

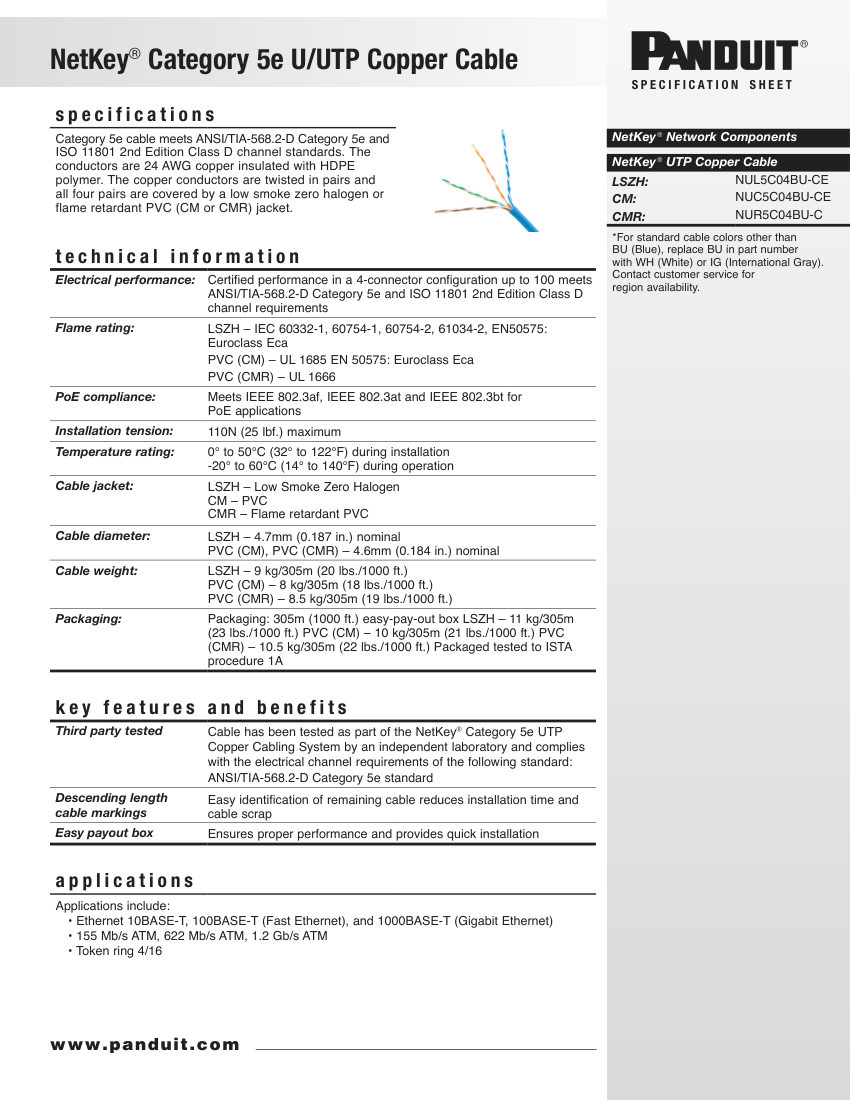

Panduit NUL5C04BU-CE cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Panduit
Catalog no.
NUL5C04BU-CE
Product type
Communications
MasterFormat
27
Cut sheet
PDF · manufacturer current

Product details

Catalog numberNUL5C04BU-CE
DescriptionPanduit Category 5e U/UTP Copper Cable (Structured Cabling). Model NUL5C04BU-CE, NUC5C04BU-CE, NUR5C04BU-C. Category 5e performance up to 100 MHz; Supports Gigabit Ethernet (1000BASE-T)
Flame ratingsLSZH (IEC 60332-1), CM (UL 1685), CMR (UL 1666)
Operating temperature-20°C to 60°C. material: 24 AWG Copper, HDPE Insulation, LSZH or PVC Jacket
Dimensions4.7mm (LSZH) or 4.6mm (PVC) nominal diameter
ComplianceANSI/TIA-568.2-D, ISO 11801 Class D, IEEE 802.3af/at/bt.

Also cataloged as: NUC5C04BU-CE, NUR5C04BU-C, NU-5C04
